1-1/8" Aluminium Tandem Chamber Master Cylinder without Push Rod WB260-8556

1-1/8" Aluminium Tandem Chamber Master Cylinder without Push Rod WB260-8556

WB260-8556 - WILWOOD HIGH VOLUME TANDEM
SKU WB260-8556
by WILWOOD
$391.40 +GST - $391.40 +GST
$391.40 +GST
$391.40 +GST
$391.40 +GST - $391.40 +GST
$391.40 +GST
$450.11 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped

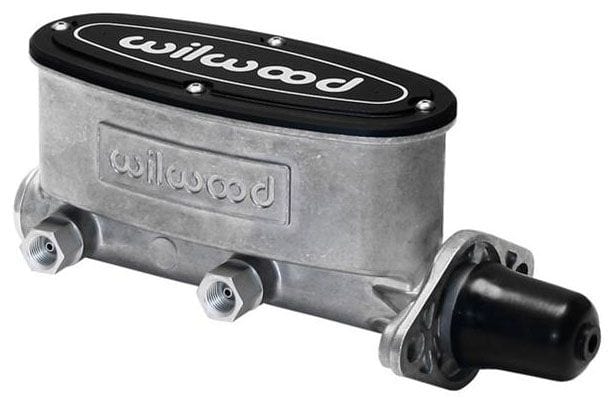

1-1/8" Aluminium Tandem Chamber Master Cylinder without Push Rod

WB260-8556

260-8556

Wilwood's tandem chamber master cylinders are fully machined from a High-pressure die casting of a premium alloy, it incorporates slotted mounting flange to accommodate mount centres between 3.22" to 3.40" and also features side-hole mounts on 6.40" centres Master cylinder is has full separation between the front and rear chambers . Dual outlets allow for right or left hand plumbing based on mount location. Offers a total piston stroke of 1.10" and a 2:1 volume ratio between the primary and secondary chambers. Available in 7/8", 1" or 1-1/8" bore sizes. Available also in a media burnished version and a black E-coat finished units.
