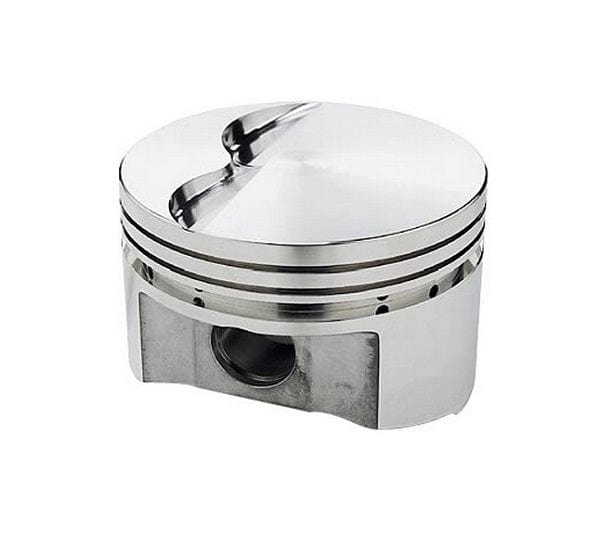

Small Block Ford 302W Stock Block - Flat Top Forged Piston SRP138735

Small Block Ford 302W Stock Block - Flat Top Forged Piston 138735 SRP138735 307 c.i., 4.040" bore, 3.000" stroke, 5.090" rod length, -5.0cc dome volume SBF 4.040" PISTONS -5cc FLAT This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes:

Spiro Lock: 927-042-CS

Straight Wall Pin: 912-2750-14-51S(123g)

Specifications:

Part #: SRP138735

CID: 302 & 394

Bore: 4.040

Stroke: 3.000 (302) & 3.850 (394)

Rod Length: 5.090 (302) & 5.956 (393)

Compression Height: 1.600

Compression Ratio with 58cc chamber volume: 9.8 (302) & 12.2 (394)

Compression Ratio with 64cc chamber volume: 9.1 (302) & 11.3 (394)

Compression Ratio with 70cc chamber volume: 8.5 (302) & 10.6 (394)

Dome Volume: -5cc

Gram Weight: 518

Footnote: .912 x 2.750 x .150 Wrist pin supplied

Oversize: 0.040

Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4040-5

SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
