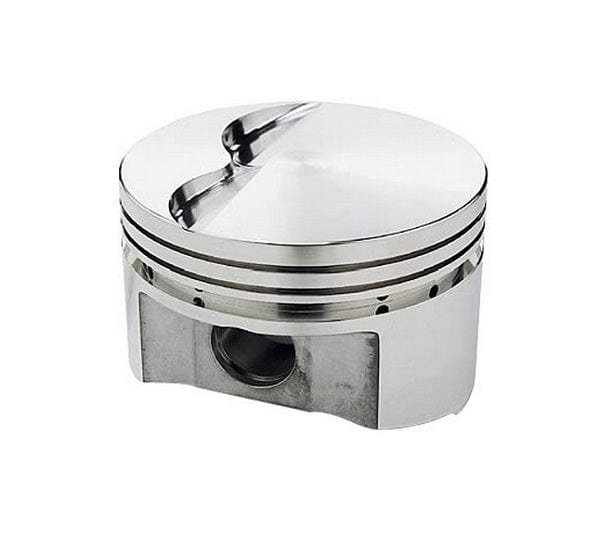

Small Block Ford 302W Stock Block - Flat Top Forged Piston SRP138734

Small Block Ford 302W Stock Block - Flat Top Forged Piston 138734 SRP138734 306 c.i., 4.030" bore, 3.000" stroke, 5.090" rod length, -5.0cc dome volume SBF 4.030" PISTONS -5cc FLAT This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings.

Includes:

Spiro Lock: 927-042-CS

Straight Wall Pin: 912-2750-14-51S(123g)

Specifications:

Part #: SRP138734

CID: 302 & 393

Bore: 4.030

Stroke: 3.000 (302) & 3.850 (393)

Rod Length: 5.090 (302) & 5.956 (393)

Compression Height: 1.600

Compression Ratio with 58cc chamber volume: 9.7 (302) & 12.2 (393)

Compression Ratio with 64cc chamber volume: 9.0 (302) & 11.3 (393)

Compression Ratio with 70cc chamber volume: 8.4 (302) & 10.6 (393)

Dome Volume: -5cc

Gram Weight: 460

Footnote: .912 x 2.750 x .150 Wrist pin supplied

Oversize: 0.030

Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4030-5
