350 Small Block Chevy - Flat Top Forged Piston SRP138094

350 Small Block Chevy - Flat Top Forged Piston SRP138094

SRP138094 - SBC 4.040" PISTONS -5cc FLAT
SKU SRP138094
by SRP
$1,369.55 +GST - $1,369.55 +GST
$1,369.55 +GST
$1,369.55 +GST
$1,369.55 +GST - $1,369.55 +GST
$1,369.55 +GST
$1574.9825 Including GST (NZ Customers only)
Availability:
Low stock

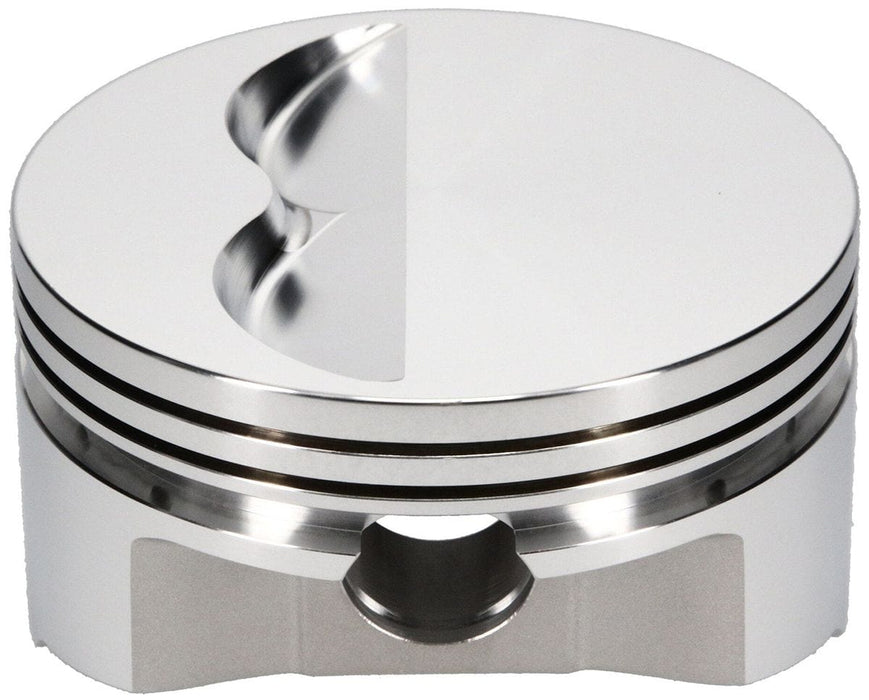

350 Small Block Chevy - Flat Top Forged Piston

359 c.i., 4.040" bore, 3.500" stroke, 6.125" rod length, -5.0cc dome volume

SRP138094

P138094

This piston set is ideal for oval track to street/strip applications, it is forged from high silicon 4032 aluminium alloy. Features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings. Includes : Spiro Lock: 927-042-CS Straight Wall Pin: 927-2750-15-51S(130g) Pin fitting Specifications : Part #: SRP138094 CID: 359 Bore: 4.040 Stroke: 3.500 Rod Length: 6.125 Compression Height: 1.125 Compression Ratio with 58cc chamber volume: 11.9 Compression Ratio with 64cc chamber volume: 11.1 Compression Ratio with 70cc chamber volume: 10.4 Dome Volume: -5.0cc Gram Weight: 424 Footnote: fits 3.480 and 3.500 stroke, Oil Rail Support is Included, Piston set also suits 3.750" stroke with 6.000" rod length Oversize: 0.020 Recommended Ring Set (Check Proseal listing to determine oil ring tension): S100S8-4040-5 SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
