350 Small Block Chevy - Dome Forged Piston SRP140674

350 Small Block Chevy - Dome Forged Piston SRP140674

SRP140674 - SBC 4.030" PISTONS +11cc DOME
SKU SRP140674
by SRP
$1,630.41 +GST - $1,630.41 +GST
$1,630.41 +GST
$1,630.41 +GST
$1,630.41 +GST - $1,630.41 +GST
$1,630.41 +GST
$1874.9715 Including GST (NZ Customers only)
Availability:
Low stock

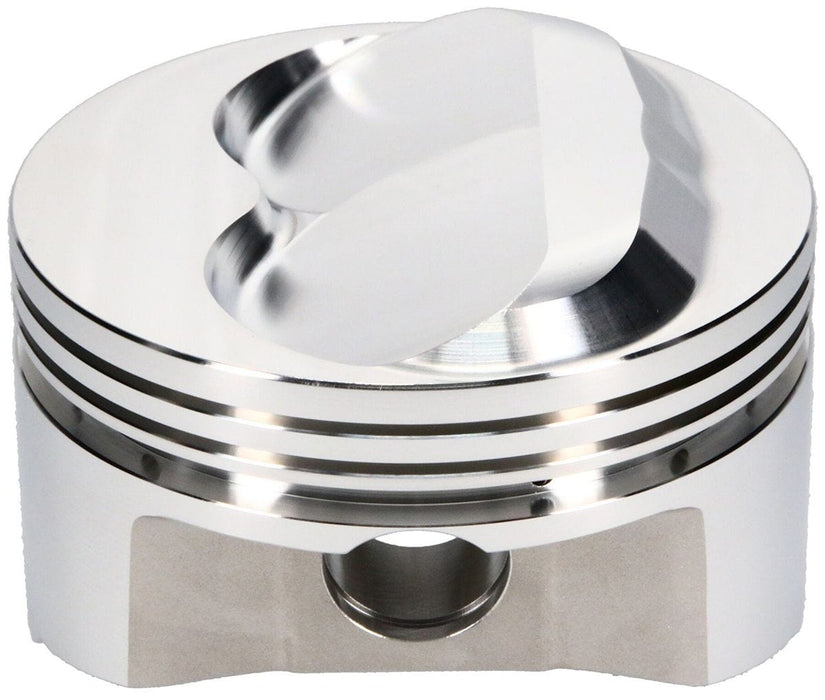

350 Small Block Chevy - Dome Forged Piston

355 c.i., 4.030" bore, 3.480" stroke, 5.700" rod length, 11.0cc dome volume

SRP140674

P140674

This piston set is ideal for oval track to street/strip applications, it is forged from low silicon 2618 aluminium alloy. Designed for use with most popular 23 degree heads, features include CNC machined ring grooves and forced pin oiling. Piston set accepts 1/16, 1/16, 3/16 rings. Includes : Spiro Lock: 927-042-CS Straight Wall Pin: 927-2750-15-51S(130g) Pin fitting Specifications : Part #: SRP140674 CID: 355 Bore: 4.030 Stroke: 3.480 Rod Length: 5.700 Compression Height: 1.560 Compression Ratio with 58cc chamber volume: 14.0 Compression Ratio with 64cc chamber volume: 12.7 Compression Ratio with 70cc chamber volume: 11.7 Dome Volume: 11cc Gram Weight: 509 Footnote: fits 3.480 and 3.500 stroke Oversize: 0.030 Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4030-5 SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product line-up, including Chevy, Ford, Chrysler, Honda and more.
