Aeroflow Small Block & Big Block Chrysler Intake Bolts - Black Finish (AF37-1215)

Aeroflow Small Block & Big Block Chrysler Intake Bolts - Black Finish (AF37-1215)

SKU AF37-1215
by Aeroflow
$82.50 +GST - $82.50 +GST
$82.50 +GST
$82.50 +GST
$82.50 +GST - $82.50 +GST
$82.50 +GST
$94.875 Including GST (NZ Customers only)

AF37-1215 - CHRYSLER INTAKE BOLTS BLACK 12

12 Point Head, Pack of 12

Part Number: AF37-1215

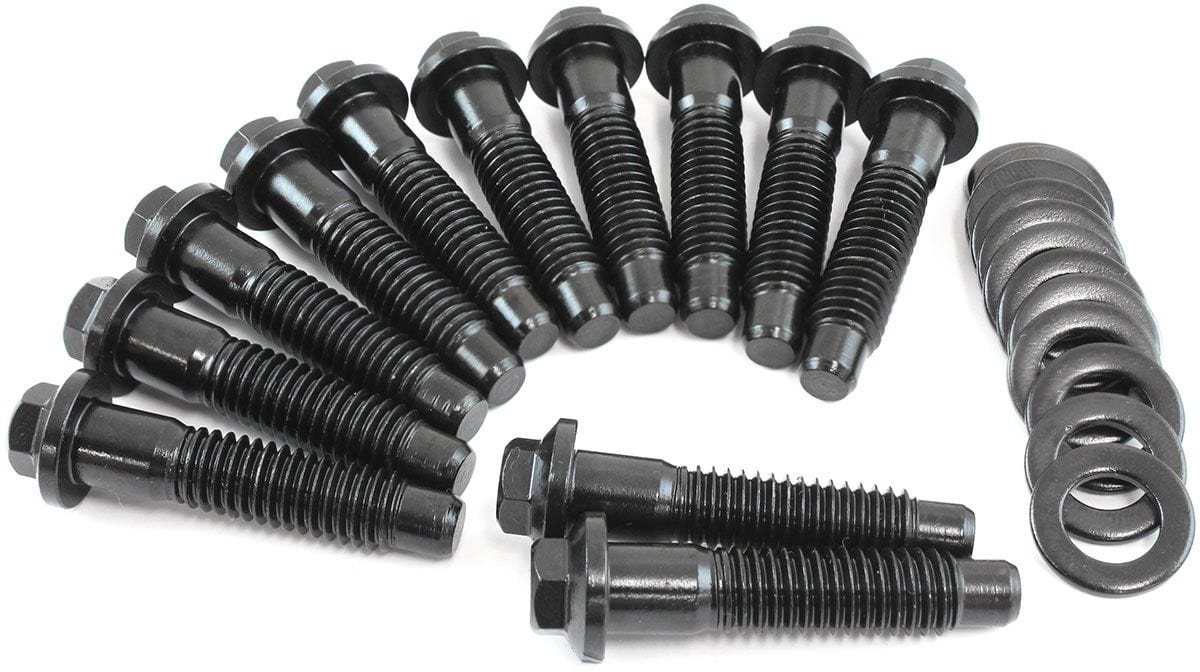

When installing a new intake manifold it is recommended to upgrade your intake bolts, some standard intake manifold bolts won't work depending on aftermarket intake manifolds. These Aeroflow intake bolts are made from chrome moly 8740 for strength. They are coated in a black oxide finish for protection and long-lasting durability. Each bolt features a compact 12-point head which is ideal for use where space is minimal on most aftermarket intake manifolds compared to the factory bolts with a larger head. Each set includes thick flat washers for optimum clamping pressures to ensure a sure seal.

Specifications: Sold as a set of 12.
Thread size : 3/8"-16
Under Head Length: 43.45mm
Head Diameter: 15.75mm
Shank Diameter: 9.30mm
Shank Length: 8.90mm

Washer Outside Diameter: 18.05mm
Washer Inside Diameter: 10.05mm
Washer Thickness: 2.5mm
