West Sump Oil Pan, 4" Deep MO20940

West Sump Oil Pan, 4" Deep MO20940

MO20940 - MAZDA 13B SUMP REAR SUMP 6 QT
SKU MO20940
by MOROSO
$1,344.32 +GST - $1,344.32 +GST
$1,344.32 +GST
$1,344.32 +GST
$1,344.32 +GST - $1,344.32 +GST
$1,344.32 +GST
$1545.968 Including GST (NZ Customers only)
Availability:
Low stock

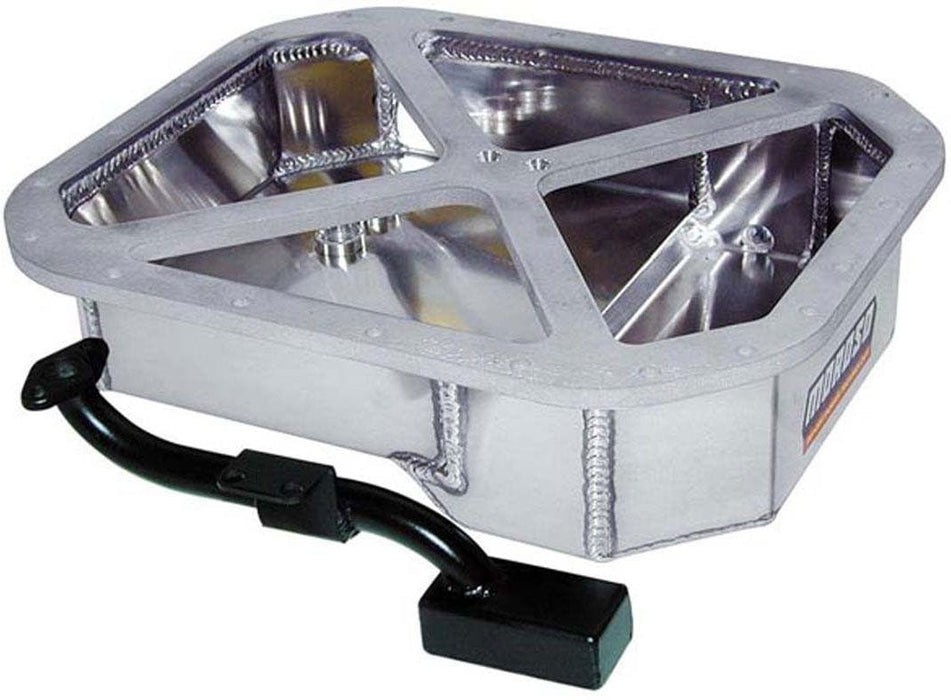

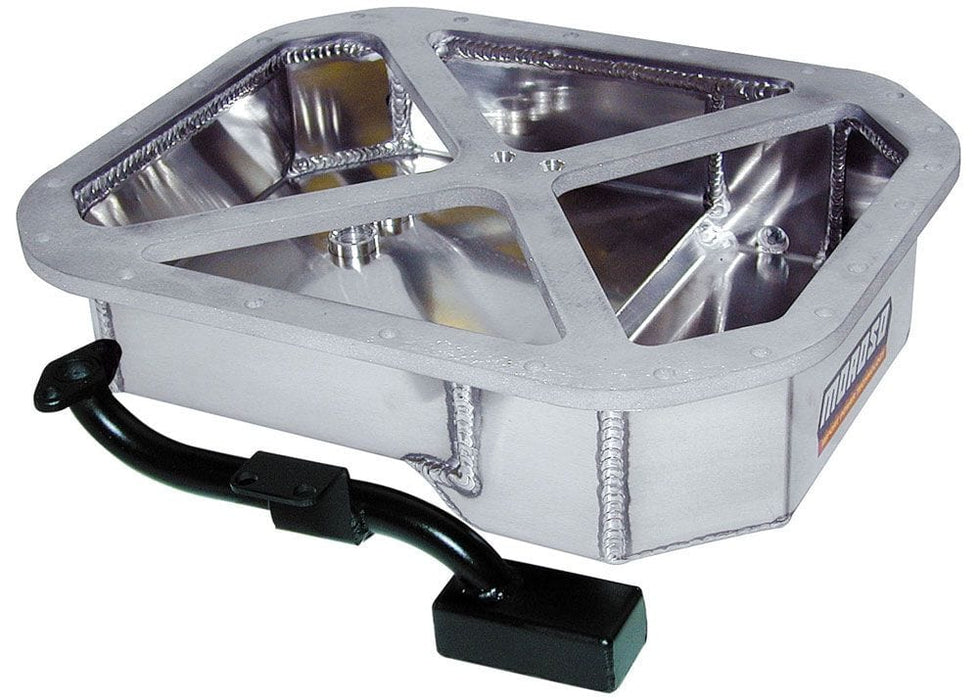

West Sump Oil Pan, 4" Deep

Suit Mazda Rotory 13B With Pick Up, For Tube Chassis Cars Only

MO20940

20940

Fits: Tube chassis cars and other cars without a cross-member located under engine (check dimensions for clearance). Oil Pan, Aluminum, Rear Sump. Engine Application: 13B Rotary (Non FD or Renesis) Fully fabricated 3/8"-thic k billet rail with integral X-brace greatly strengthens engine assembly to reduce twisting and axial deflection Includes .080"-thick aluminum Baffle Plate to de-aerate and cool return oil (other baffles are only .060" thick) Includes an oil pump pickup specially designed for this pan; access holes in pan facilitate mounting pickup to the front cover For Drag Race & Street Includes magnetic drain plug with extra copper washer and pan mounting kit with hex-drive steel studs to eliminate stripping the engine block and serrated-face flare nuts to withstand vibration Accommodates stock pan gasket and dipstick with existing oil level marks
