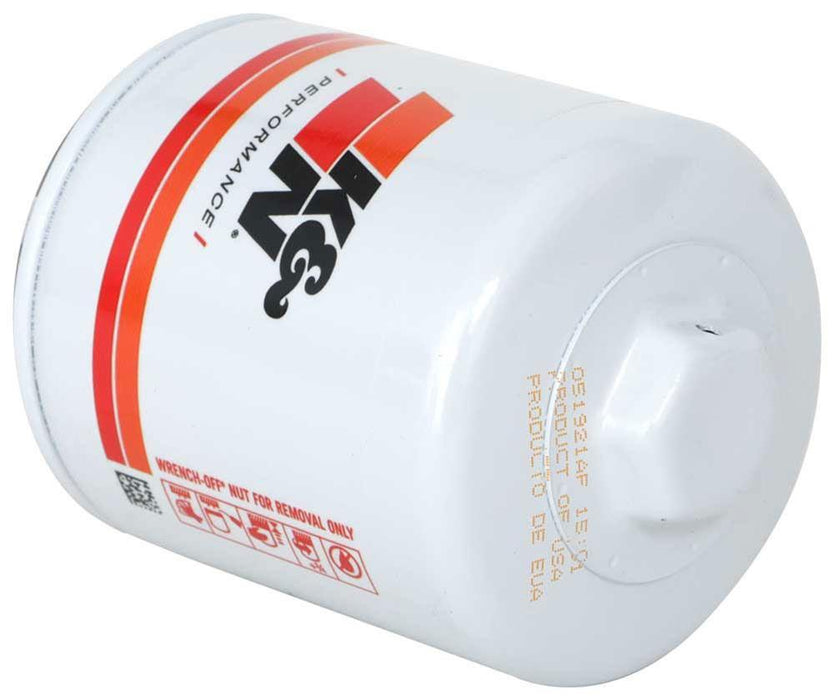

K&N Performance Gold Oil Filter (Z158 & Z386) KNHP-1003
KNHP-1003 HP-1003 Originally developed for demanding race applications, K&N's Premium Wrench-Off Oil Filter has become a favorite among consumers for its
durability and easy removal. Most of our automotive and marine oil filters come with a 1" nut welded to the top of the canister so they
can be easily wrenched-off with a standard tool. To satisfy the demands of racers, our oil filter has many features over and above the
requirements of most vehicles. We use thicker canister walls for extra strength and durability which reduces the risk of damage from
loose rocks and debris. The drilled hole on the nut provides for safety wire attachment. Our oil filters also use a resin impregnated
cellulose filter media. This allows for higher flow rates while providing outstanding filtration
Part KNHP-1003 Product Specifications
Product Style: Oil Filters r />Anti Drain Back Valve: Yes
Bypass Valve: Yes
Filter Material: High Flow Premium Media
Gasket Material: Nitrile Rubber
Height: 3.313 in (84 mm)
Outside Diameter: 2.688 in (68 mm)
PSI Relief Valve: 11-17
Removal Nut: Yes
Style: Canister
Thread Specification: 3/4 In. - 16
Removal Nut Size: 1 inch
Filter Cross Reference
Ryco Z158
Ryco Z386
AC Delco PF1233
AC Delco PH228
Briggs & Stratton 820314
Champ Labs. PH2840
Fram PH2951
Fram PH4386
Fram PH4967
Fram PH5166
Mobil One M1103
Motorcraft EFL89
Motorcraft FL271
Motorcraft FL782
Motorcraft FL836
Motorcraft FL840
Onan 1220338
Onan 1220737
Purolator L14476
Purolator L14477
Purolator L22821
WIX 51366
WIX 51394
WIX 51395
WIX 51396
WIX 51625
BRIGGS & STRAT. 58A447 34HP - OEM 820314
BRIGGS & STRAT. 588447 31HP DSL - OEM 820314
BRIGGS & STRAT. 587400 - OEM 820314
BRIGGS & STRAT. 583400 - OEM 820314
BRIGGS & STRAT. 582447 26.5HP DSL - OEM 820314
BRIGGS & STRAT. 582400 26.5HP DSL - OEM 820314
BRIGGS & STRAT. 580400 31HP - OEM 820314
BRIGGS & STRAT. 522447 23.6HP DSL - OEM 820314
BRIGGS & STRAT. 522400 23.6HP DSL - OEM 820314
BRIGGS & STRAT. 437400 - OEM 820314
BRIGGS & STRAT. 433400 - OEM 820314
BRIGGS & STRAT. 432447 18HP DSL - OEM 820314
BRIGGS & STRAT. 432400 18HP - OEM 820314
2013 TOYOTA YARIS 1.5L L4 F/I - All
2013 TOYOTA PRIUS C 1.5L L4 F/I - All
2013 TOYOTA MATRIX 2.4L L4 F/I - All
2013 SUZUKI SX4 2.0L L4 F/I - All
2013 SUZUKI KIZASHI 2.4L L4 F/I - All
2013 SUZUKI GRAND VITARA 2.4L L4 F/I - All
2013 SCION XB 2.4L L4 F/I - All
2012 TOYOTA YARIS 1.5L L4 F/I - All
2012 TOYOTA PRIUS C 1.5L L4 F/I - All
2012 TOYOTA MATRIX 2.4L L4 F/I - All
2012 TOYOTA AVANZA 1.5L L4 F/I - All
2012 SUZUKI SX4 CROSSOVER 2.0L L4 F/I - All
2012 SUZUKI SX4 2.0L L4 F/I - All
2012 SUZUKI KIZASHI 2.4L L4 F/I - All
2012 SUZUKI GRAND VITARA 2.4L L4 F/I - All
2012 SCION XB 2.4L L4 F/I - All
2012 LEXUS HS250H 2.4L L4 F/I - All
2011 TOYOTA YARIS 1.5L L4 F/I - All
2011 TOYOTA MATRIX 2.4L L4 F/I - All
2011 TOYOTA COROLLA 2.4L L4 F/I - All
2011 TOYOTA CAMRY HYBRID 2.4L L4 F/I - All
2011 TOYOTA AVANZA 1.5L L4 F/I - All
2011 SUZUKI SX4 2.0L L4 F/I - All
2011 SUZUKI KIZASHI 2.4L L4 F/I - All
2011 SUZUKI GRAND VITARA 2.4L L4 F/I - All
2011 SCION XB 2.4L L4 F/I - All
2011 LOTUS ELISE 1.8L L4 F/I - All
2011 LEXUS HS250H 2.4L L4 F/I - All
2010 TOYOTA YARIS 1.5L L4 F/I - All
2010 TOYOTA MATRIX 2.4L L4 F/I - All
2010 TOYOTA COROLLA 2.4L L4 F/I - All
2010 TOYOTA CAMRY HYBRID 2.4L L4 F/I - All
2010 TOYOTA AVANZA 1.5L L4 F/I - All
2010 SUZUKI SX4 2.0L L4 F/I - All
2010 SUZUKI KIZASHI 2.4L L4 F/I -
