LS1 Extreme Duty Asymmetrical FSR Flat Top Forged Piston J321240

LS1 Extreme Duty Asymmetrical FSR Flat Top Forged Piston J321240

J321240 - LS1 3.905" PISTONS -2cc DISH
SKU J321240
by JE
$1,565.20 +GST - $1,565.20 +GST
$1,565.20 +GST
$1,565.20 +GST
$1,565.20 +GST - $1,565.20 +GST
$1,565.20 +GST
$1799.98 Including GST (NZ Customers only)
Availability:
Low stock

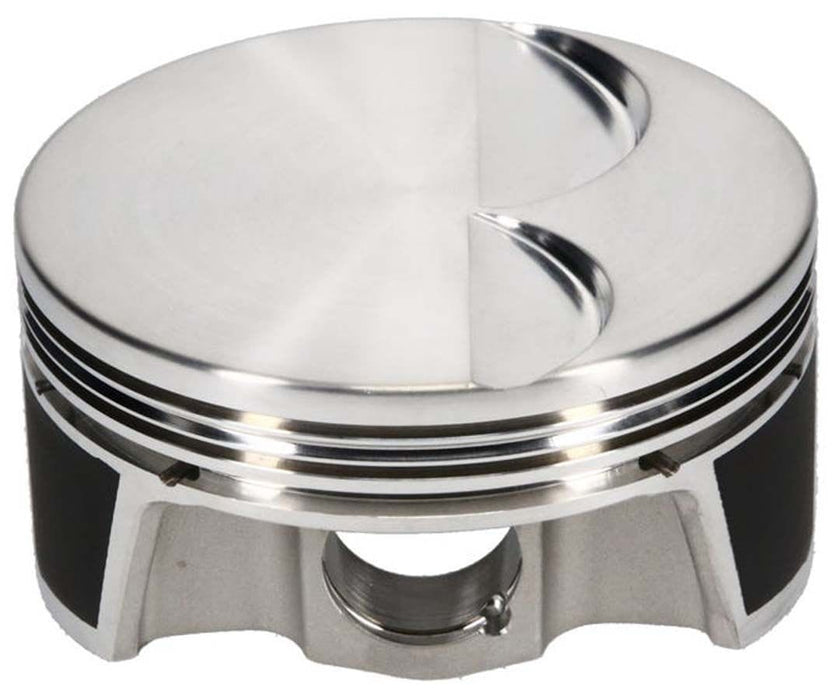

LS1 Extreme Duty Asymmetrical FSR Flat Top Forged Piston

3.905" bore, 3.622" stroke, 6.098" rod length, -2cc dome volume

J321240

21240

We have redesigned and expanded our GM LS1 series product lines! These new pistons utilized our dedicated Forged Side Relief (FSR) forging that was specifically designed for high output GM LS1 series engines. In addition we have found ways to reduce weight and maintain the durability needed for both street and racing use. Lightweight and extremely durable, these pistons are machined for 1.5mm, 1.5mm, 3.0mm rings. Wrist pin upgrade recommended above 800hp. Includes: Pin #945-2250-15C (105g) Round Wire Locks # 927-073-MW Features: High strength FSR forging Accumulator Grooves Double Pin Oilers Offset Wrist Pin Piston Specifications Make: CHEVROLET Engine: CHEVROLET LS GEN III/IV Bore Diameter: 3.905 Compression Height: 1.340 Compression Ratio with 64cc chamber volume: 10.4 Compression Ratio with 66cc chamber volume: 10.2 Compression Ratio with 72cc chamber volume: 9.6 Piston Volume: -2 Cylinder Head: LSX/L92 12 DEG Piston Pin Outside Diameter: 0.945 Piston Pin Length: 2.250 Piston Pin Material: 5115 Ringset Included: No Top Compression Ring Thickness: 0.06 Second Compression Ring Thickness: 0.06 Oil Ring Thickness: 0.1175 Piston Material: 2618 Forging Type: FSR Piston Avg Weight: 436 Pin Wall Thickness: 0.150 Piston Type: Flat
