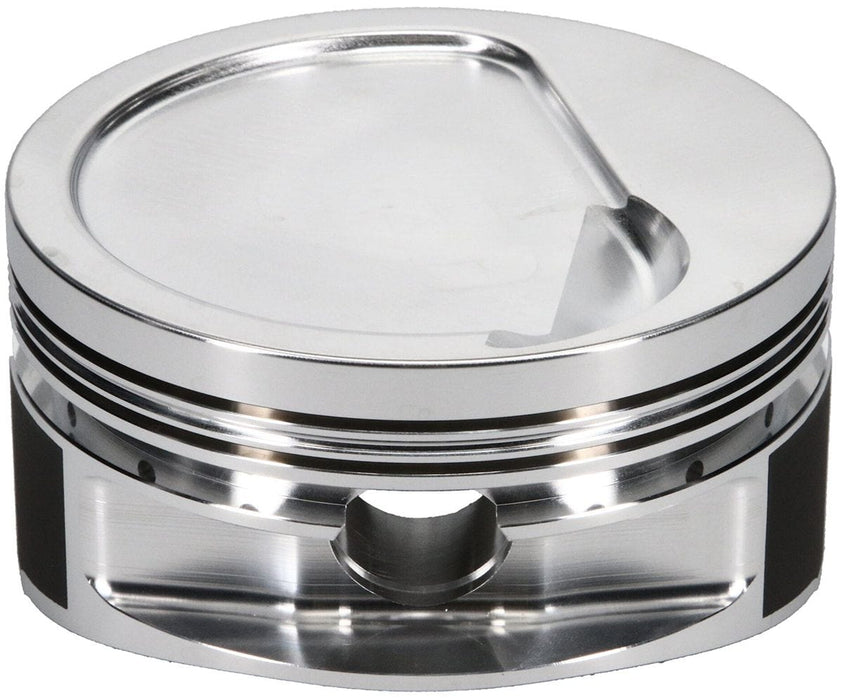

Big Block Inverted Dome Forged Piston J257943

Big Block Chevy 548, 4.530" bore, 6.385" rod length, -20.0cc dome volume

J257943

57943

These big block pistons are compatible with forced induction, nitrous and angle milled heads. The inverted dome shape has been designed for maximum efficiency and horsepower. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings. Will fit both open and closed chamber cylinder heads. Includes: Pin #990-2930-18-51S(174g) Double spiro locks #990-042-CS Specifications : Part #: J257943 CID: 548 Bore: 4.530 Stroke: 4.250 Rod Length: 6.385 Block Height: 9.780 Compression Height: 1.270 Compression Ratio with 110cc chamber volume: 8.9 Compression Ratio with 118cc chamber volume: 8.5 Compression Ratio with 124cc chamber volume: 8.2 Dome Volume: -20.0cc Gram Weight: 581 Footnote: Oil Rail Support is Included Oversize: .064 Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4530-5 With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on. The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
