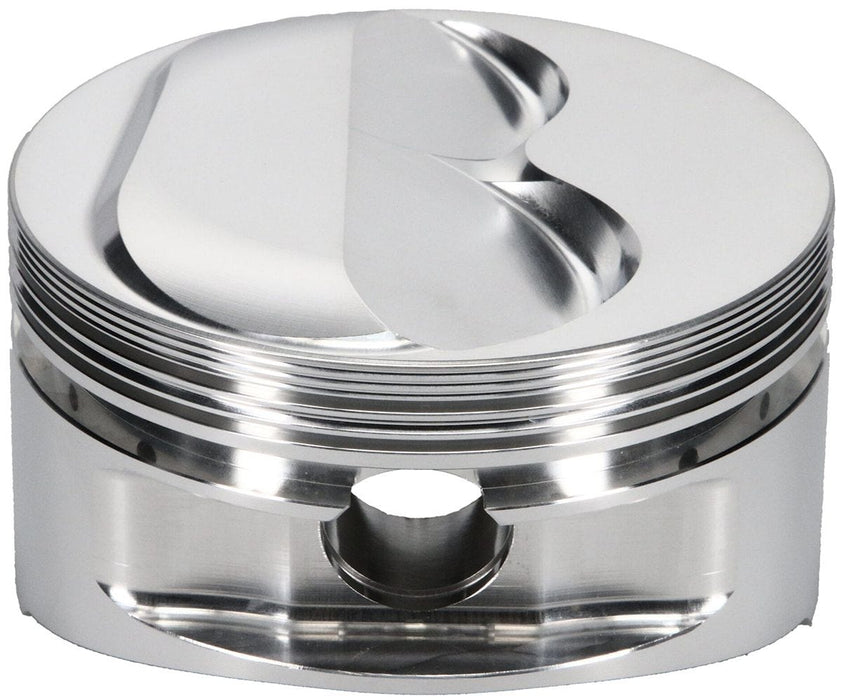

350 Small Block Chevy - 23° Dome Forged Piston J182012

Small Block Chevy 357, 4.030", 6.000" rod length, 13.5cc dome volume

J182012

82012

These high-compression pistons are compatible with most aftermarket 23° heads and are ideal for drag racing and circle track applications. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Precision CNC ring grooves are designed for 1/16, 1/16, 3/16 rings. Will not fit Pro Topline or Brodix 11X cylinder heads. Includes: Pin #927-2750-15-51S (130g) Contact reduction grooves Double Spiro Locks #927-042-CS Double pin oilers Specifications : Part #: J182012 CID: 357 Bore: 4.030 Stroke: 3.500 Rod Length: 6.000 Block Height: 9.000 Compression Height: 1.250 Compression Ratio with 58cc chamber volume: 14.7 Compression Ratio with 64cc chamber volume: 13.3 Compression Ratio with 76cc chamber volume: 11.2 Dome Volume: 13.5cc Gram Weight: 453 Footnote: fits 3.480 and 3.500 stroke Oversize: .030 Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4030-5 With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on. The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
