Subaru WRX EJ18, 20, 22, 25 Forged H-Beam Conrod Set EACRS5137S3D

Subaru WRX EJ18, 20, 22, 25 Forged H-Beam Conrod Set EACRS5137S3D

EACRS5137S3D - EAGLE SUBARU WRX 5.137" H-BEAM
SKU EACRS5137S3D
by EAGLE
$929.45 +GST - $929.45 +GST
$929.45 +GST
$929.45 +GST
$929.45 +GST - $929.45 +GST
$929.45 +GST
$1068.8675 Including GST (NZ Customers only)
Availability:
Low stock

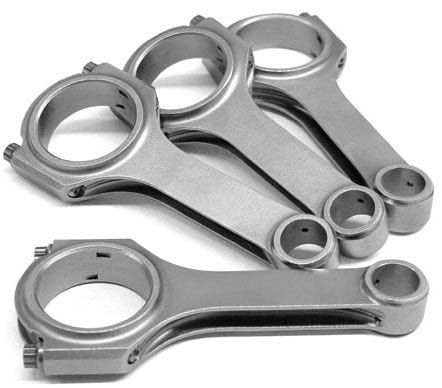

Subaru WRX EJ18, 20, 22, 25 Forged H-Beam Conrod Set

5.137" Length

EACRS5137S3D

CRS5137S3D

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts EJ18, EJ20, EJ22, EJ257. Older design used 5/16" bolt (3/8" head) - torque is 28 ftlbs with moly lube. Some clearancing of the case may be neccessary in some engines. Rod Specification Bolt Type: 3/8" ARP 2000 Pin Fit: Bushed Maximum HP: 900 Rod Length: 5.137" Rod Journal: 2.047" Pin Size: .906"
