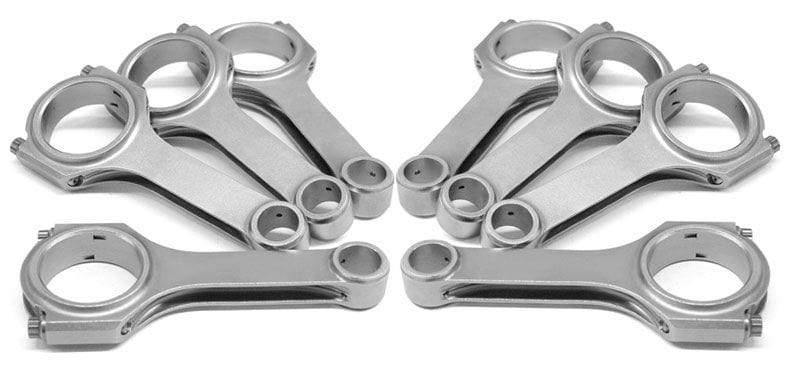

SB Chev L/J Forged H-Beam Conrod Set EACRS6000BST

SB Chev L/J Forged H-Beam Conrod Set EACRS6000BST

EACRS6000BST - CHEV H-BEAM CONRODS 6.0" L/J
SKU EACRS6000BST
by EAGLE
$1,352.66 +GST - $1,352.66 +GST
$1,352.66 +GST
$1,352.66 +GST
$1,352.66 +GST - $1,352.66 +GST
$1,352.66 +GST
$1555.559 Including GST (NZ Customers only)
Availability:
Low stock
SB Chev L/J Forged H-Beam Conrod Set

6.000" Length Clearanced For 4.000" Stroke

EACRS6000BST

CRS6000BST

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts. SB Chev, CNC clearanced for up to 4" stroke. Rod Specification Bolt Type: 7/16" ARP 8740 Pin Fit: Bushed Maximum HP: 1200 Rod Length: SB Chev 6.000" Rod Journal: SB Chev 2.100" Pin Size: SB Chev .927"
