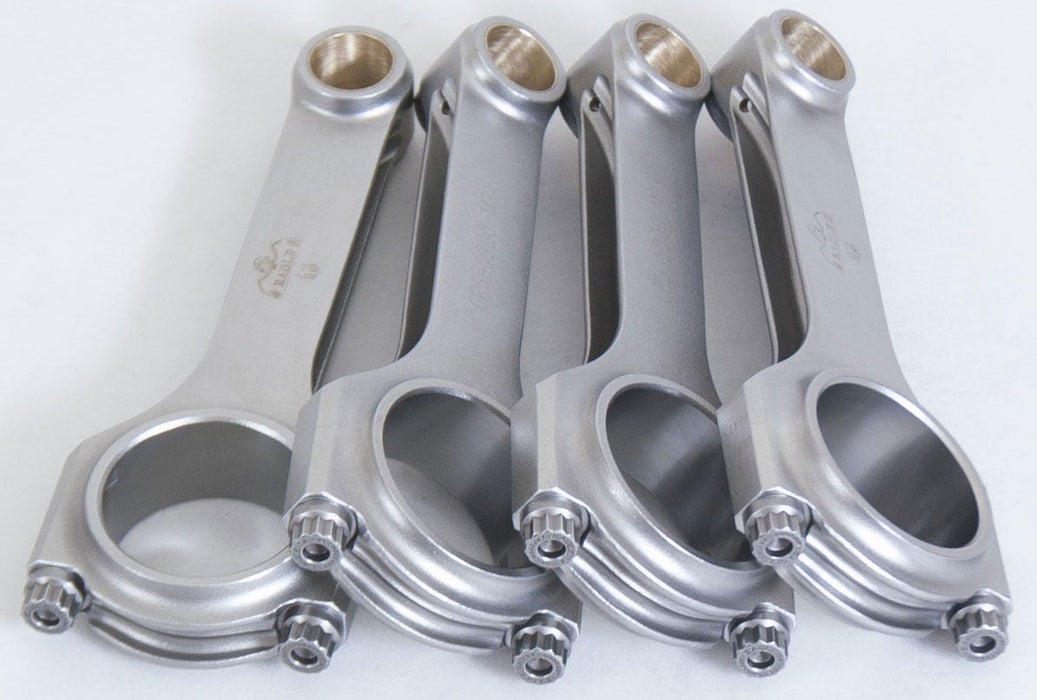

Mitsubishi 4G63 (6 Bolt) Forged H-Beam Conrod Set EACRS5900MA3D

Mitsubishi 4G63 (6 Bolt) Forged H-Beam Conrod Set EACRS5900MA3D

EACRS5900MA3D - EAGLE RODS MITSU 4G63 5.900"
SKU EACRS5900MA3D
by EAGLE
$978.99 +GST - $978.99 +GST
$978.99 +GST
$978.99 +GST
$978.99 +GST - $978.99 +GST
$978.99 +GST
$1125.8385 Including GST (NZ Customers only)
Availability:
Low stock
Mitsubishi 4G63 (6 Bolt) Forged H-Beam Conrod Set

5.900" Length (1989-92)

EACRS5900MA3D

CRS5900MA3D

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts. 6 bolt 4G63 (89-92) Rod Specification Bolt Type: 3/8" ARP 2000 Pin Fit: Bushed Maximum HP: 1000 Rod Length: 5.900" Rod Journal: 1.771" Pin Size: .827"
