BB Chev Forged H-Beam Conrod Set EACRS61353D

BB Chev Forged H-Beam Conrod Set EACRS61353D

EACRS61353D - H-BEAM CONROD BBC CHEV 6.135
SKU EACRS61353D
by EAGLE
Sold out
$1,167.25 +GST - $1,167.25 +GST
$1,167.25 +GST
$1,167.25 +GST
$1,167.25 +GST - $1,167.25 +GST
$1,167.25 +GST
$1342.3375 Including GST (NZ Customers only)
Availability:
Out of stock

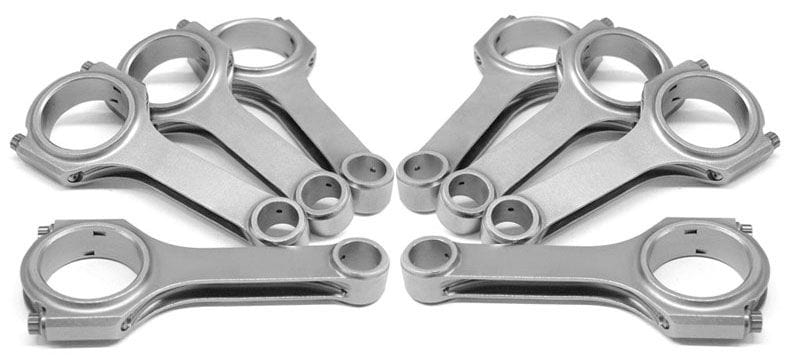

BB Chev Forged H-Beam Conrod Set

6.135" Length

EACRS61353D

CRS61353D

The Eagle ESP H-beam connecting rods are a 2-piece, forged, vacuum-degassed, 4340-certified steel construction that provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts. Rod Specification Bolt Type: 7/16" ARP 8740 Pin Fit: Bushed Maximum HP: 850 Rod Length: BB Chev 6.135" Rod Journal: BB Chev 2.200" Pin Size: BB Chev .990"
