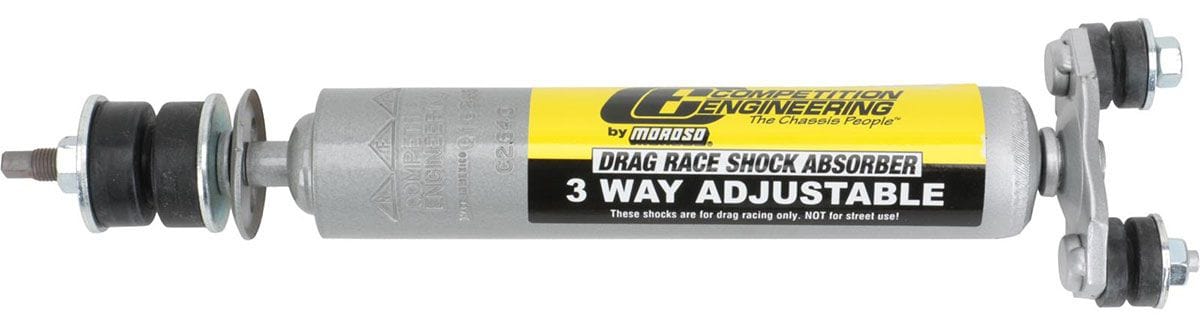

3-Way Adjustable Front Drag Shock MOC2640

Suit AMC, Ford, Mercury, Falcon XR-XF From 1960-83

MOC2640

C2640

Competition Engineering's 3-Way Adjustable Drag Shocks are designed to allow the racer to dial-in the race car to meet changing track conditions. Shock valving plays a very important role in the way your car will perform both during initial launch and throughout the quarter mile. The principle behind our shock absorber design is to allow the front end of the race car to rise rapidly upon initial launch, creating greater weight transfer and better traction to the rear tires. As the car travels down the track, the front end will gradually descend to its ride height without unloading the rear tires which is a major cause of wheel spin. Our rear shocks work in conjunction with our front shocks making the transition from initial launch to top end charge as smooth as possible. Competition Engineering's Rear Drag Shocks can be adjusted for changing track conditions by simple compressing and turning the shock. For slick tracks, set to the 50/50 adjustment; on good tracks, set to the 70/30 for better weight transfer. Competition Engineering's Front Drag Shocks are adjustable in three ratios: 90/10, 80/20 and 60/40. These ratios reflect the percentage of force required to extend and compress the shock absorber. You can quickly change the valve setting by simply compressing the shock fully and rotating the shaft until the indexing notch mates with the desired setting on the body. It’s as simple as twist and click. Our Rear Drag Shocks are also adjustable in three ratios: 70/30, 60/40 and 50/50. These ratios also represent the percentage of force required to compress and extend the shock unit. Only this time, the first number is compression and the second extension. These shocks also adjust by compressing them fully and rotating to the desired setting on the body. Extended Length: 14.34" Collapsed Length: 9.24" Diameter: 1.63" Application: AMC Ambassador 1962-74 AMC Matador 1971-78 AMC Rebel 1967-70 AMC AMX 1978-80 AMC AMX/Javelin 1970-74 AMC Concord/Gremlin/Hornet/Spirit 1970-83 AMC Eagle 1980-88 Ford Fairlane 1965-71 Ford Torino 1965-71 Ford Falcon 1966-70 Ford Mustang, Fairmont 1971-73 Ford Ranchero 1960-71 Mercury Comet 1960-69 Mercury Cougar 1971-73 Mercury Montego 1968-71
