Aeromotive Phantom Carbureted 340 Fuel Pump Kits 17254
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 17254
Part Type: Fuel System Pump Kits
Product Line: Aeromotive Phantom Carbureted 340 Fuel Pump Kits
Automotive Fittings Part Number: AEI-17254
UPC: 00684980005905
Maximum Fuel Pressure (psi): 90
Fuel Pump Included: Yes
Flow Rate: 90 gph/340 lph
Fuel Pressure Regulator Included: Yes
Pressure Range (psi): 3-15 psi
Boost/Vacuum Reference Port: Yes
Fuel Line Included: No
Fuel Filter Included: Yes
Fittings Included: Yes
Clamps Included: No
Quantity: Sold as a kit.
Notes: Kit includes fuel pump, wiring kit, and fuel pressure gauge. Works in tanks 6 in. to 12 in. deep. Also features a vent (-6 AN O-ring). Must be used with a return-style system and requires a 3 1/4 in. hole.
Description:
Aeromotive Phantom carbureted 340 lph fuel pump kits include all the main components required to create an effective carbureted fuel system. The baffled pump kits ship with the proper carbureted bypass fuel pressure regulator, high-flow billet fuel filter, and filter mounting bracket—plus all the required port fittings and O-rings, the deluxe wiring kit, and fuel pressure gauge. Aeromotive Phantom kits work with naturally-aspirated and blown carbureted engines producing up to 900-plus flywheel horsepower.

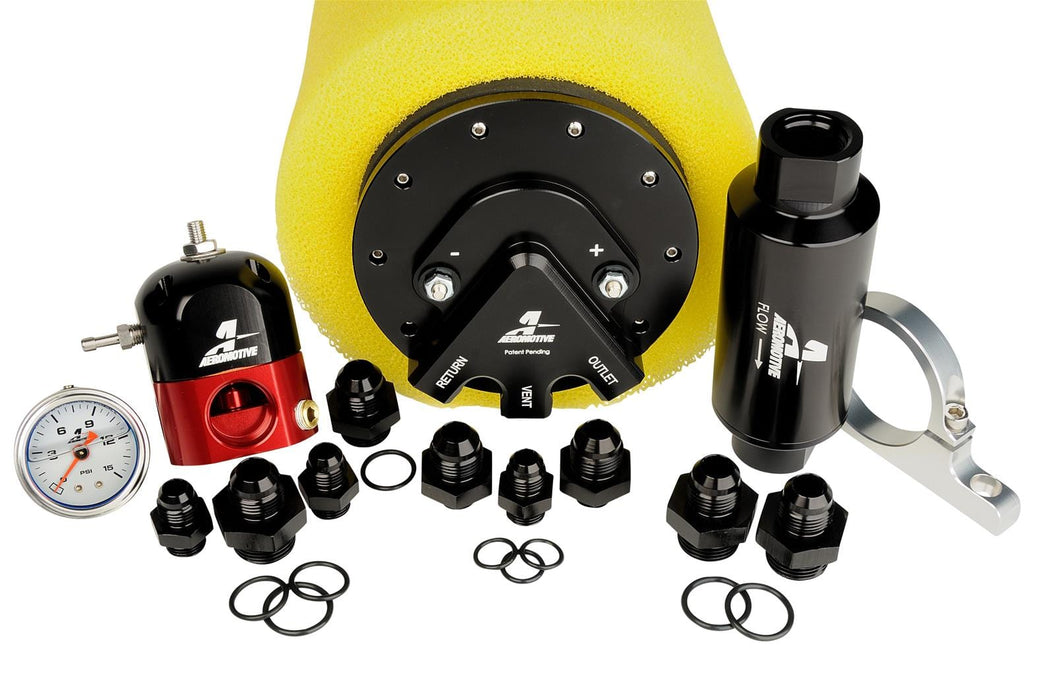

Aeromotive Phantom carbureted 340 fuel pump kits include:
* Phantom 340 fuel pump
* 10-micron fuel filter
* Fuel filter bracket
* Fuel pressure regulator
* Fuel pressure gauge
* Fuel pump wiring kit
* (3) -6 AN ORB to -6 AN flare fittings
* (1) -8 AN ORB to -8 AN flare fitting
* (3) -10 AN ORB to -8 AN flare fittings
* (1) -6 AN port plug
* (2) -6 AN ORB to -8 AN flare fittings
