Aeromotive Fuel Pressure Regulator and Filter Kits 13226
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 13226
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Fuel Pressure Regulator and Filter Kits
Automotive Fittings Part Number: AEI-13226
UPC: 684980014297
Regulator Pressure (psi): 40-75
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: No
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -10 AN
Inlet Attachment: Female threads
Outlet Quantity: 1
Regulator Outlet Size: -10 AN
Outlet Attachment: Female threads
Return Fitting Size: -6 AN
Return Attachment: Female threads
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Clearcoat
Rebuildable: No
Mounting Bracket Included: No
Remanufactured: No
Quantity: Sold as a kit.
Description:

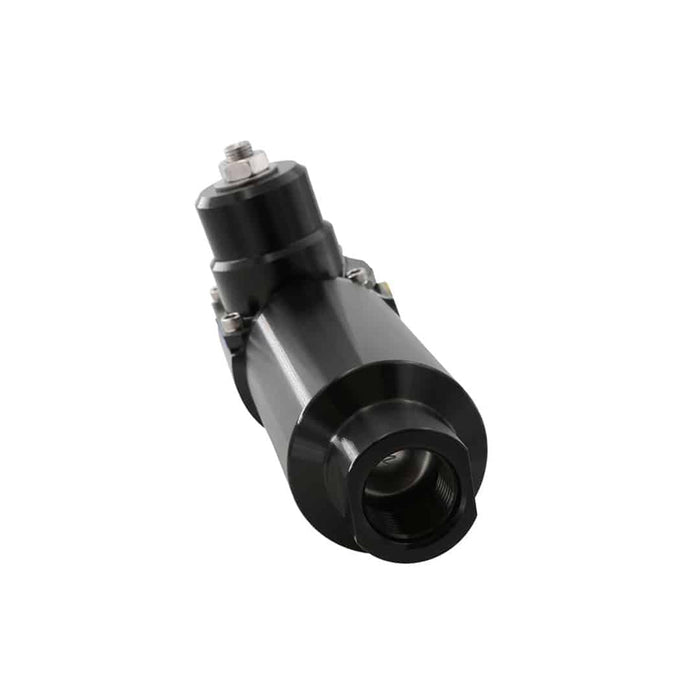

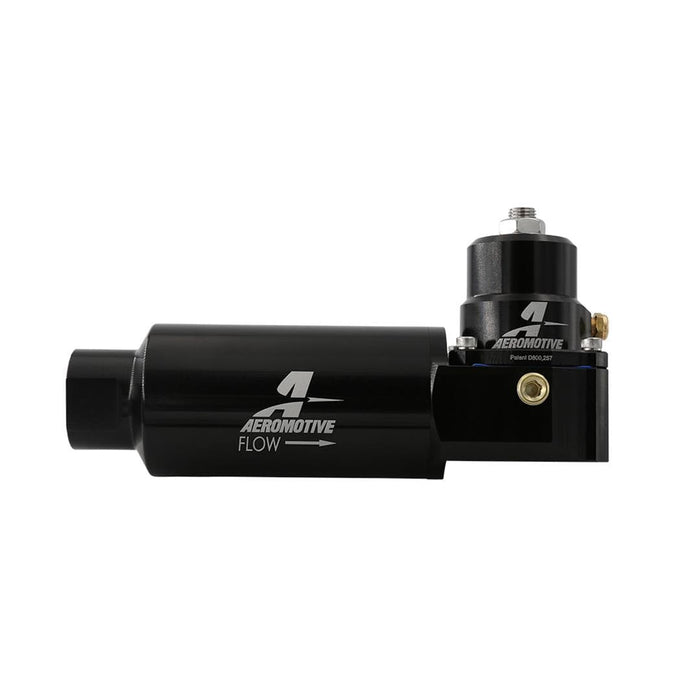

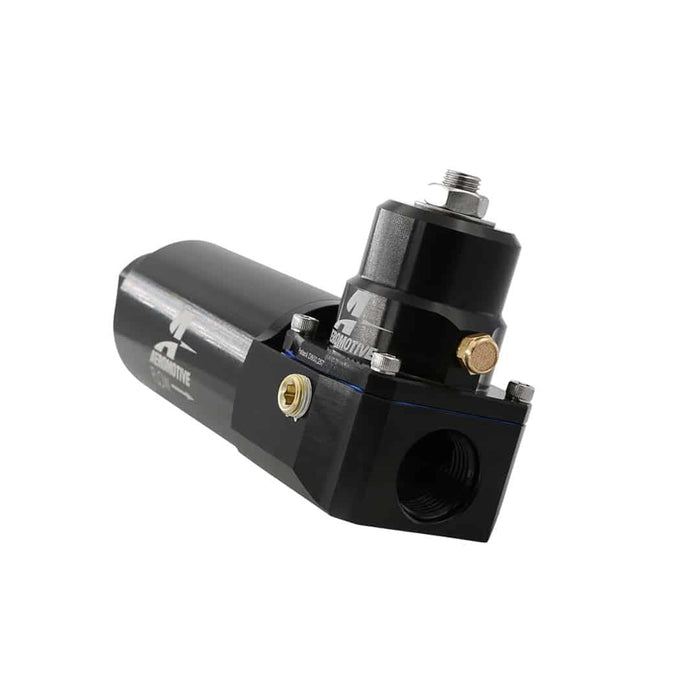

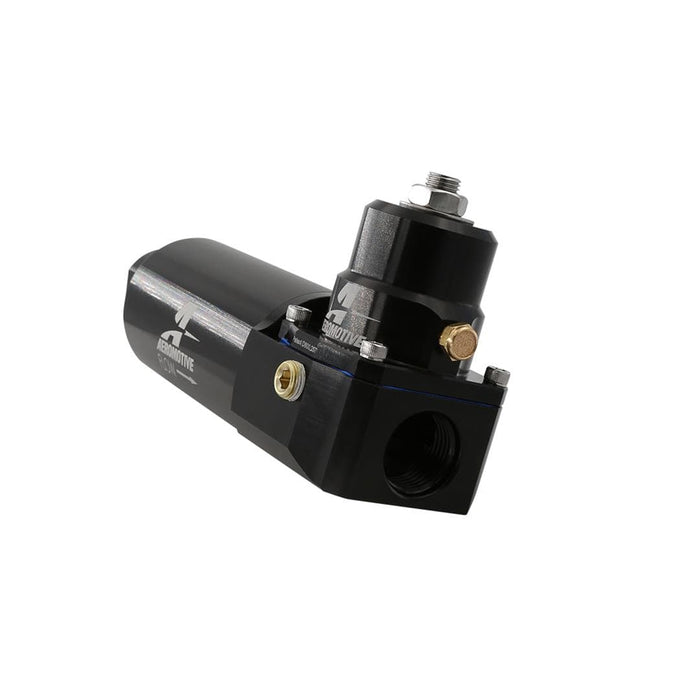

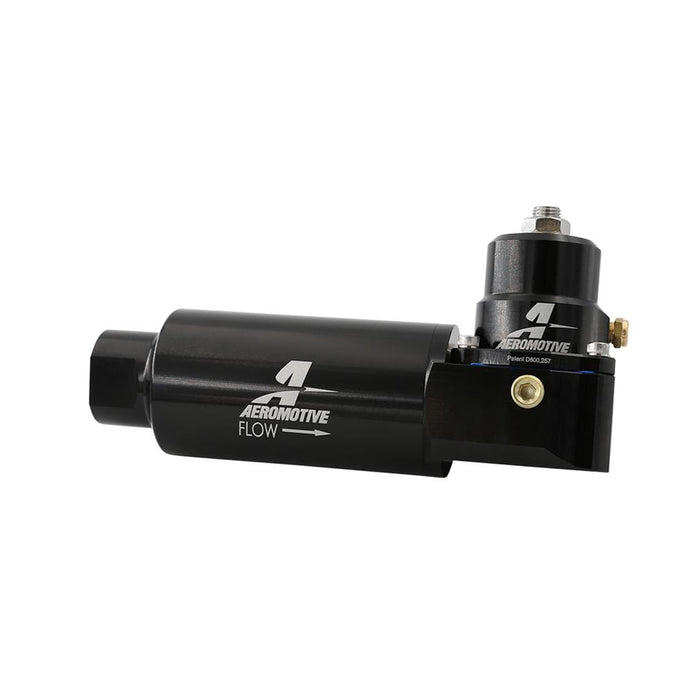

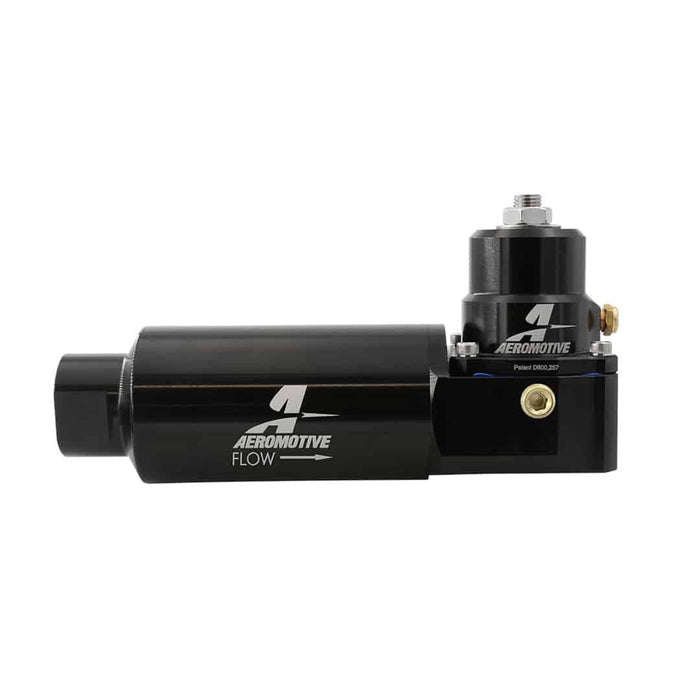

Aeromotive fuel pressure regulator and filter combo kits are available for both EFI and carbureted applications. A 10-micron cellulose filter is paired with an adjustable regulator. The aluminum regulators are offered with a black or clear anodized finish.
Specifications and notes:
* AN -10 inlet and outlet ports with AN -06 return port
* 1/8 in. NPT dedicated gauge port
* Easy installation for street performance vehicles
* Reduces required return line length
-- EFI adjustable from 40 psi to 75 psi, made for A1000 and smaller pumps
-- Carb adjustable from 3 psi to 20 psi, made for 250 gph and smaller pumps
