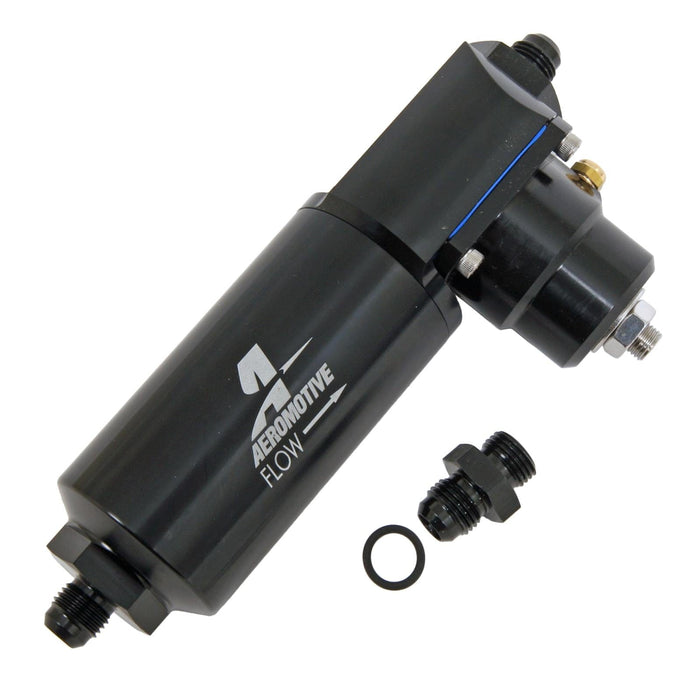

Aeromotive Fuel Pressure Regulator and Filter Kits 13147
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 13147
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Fuel Pressure Regulator and Filter Kits
Automotive Fittings Part Number: AEI-13147
UPC: 684980014563
Regulator Pressure (psi): 40-75
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -6 AN O-ring
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -6 AN O-ring
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN O-ring
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Rebuildable: No
Mounting Bracket Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: To use this regulator with a boost reference, the bronze filter fitting must be removed and replaced with a 1/16 in. NPT fitting to hose barb adapter.
Description:
Aeromotive fuel pressure regulator and filter combo kits are available for both EFI and carbureted applications. A 10-micron cellulose filter is paired with an adjustable regulator. The aluminum regulators are offered with a black or clear anodized finish.
Specifications and notes:
* AN -10 inlet and outlet ports with AN -06 return port
* 1/8 in. NPT dedicated gauge port
* Easy installation for street performance vehicles
* Reduces required return line length
-- EFI adjustable from 40 psi to 75 psi, made for A1000 and smaller pumps
-- Carb adjustable from 3 psi to 20 psi, made for 250 gph and smaller pumps
