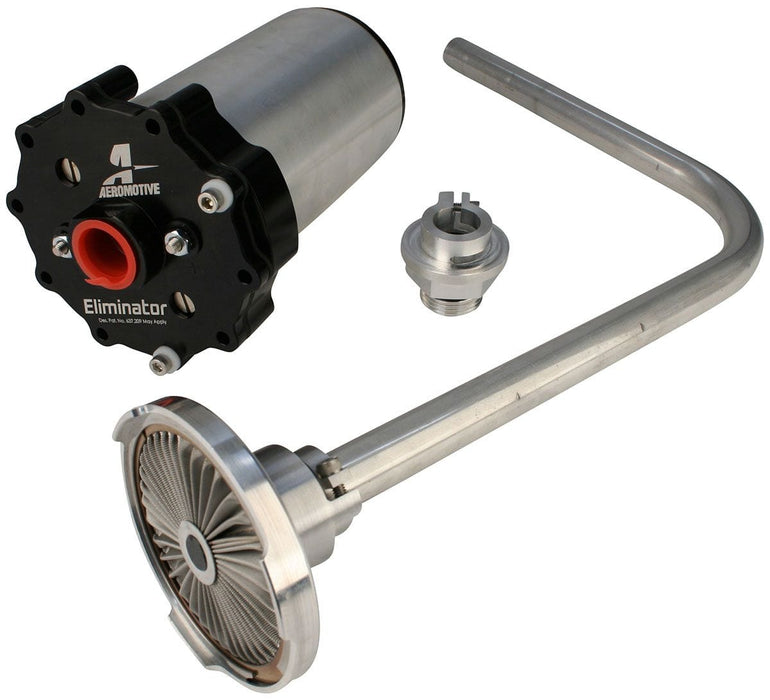

Eliminator Stealth Universal Fuel Pump Assembly ARO18669

Top Mount

ARO18669

O18669

Since releasing our Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, we've developed our new Universal Stealth Pump Assemblies. These revolutionary designs incorporate the same advantages all our Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell. Designed for the custom tank builder or fabricator, the universal assembly uses O-Ring clamps to positively seal the provided 3/4" tube to the both the filter pickup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance. Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump; increasing performance and driveability while extending the life span of the pump. Proper baffling and clearance will berequired, but installation could not be simpler with this universal design. Fuel Injected Engines: up to 1900 HP - naturally aspirated up to 1400 HP - forced air induction Carbureted Engines: up to 2300 HP - naturally aspirated up to 1700 HP - forced air induction Features: 100 Micron stainless steel Fuel Filter / Pickup 20" long 3/4" aluminium tube with 90 degree bend Gaskets, mounting ring, bolts and washers for a positive seal mounting ORB-12 inlet port and ORB-10 outlet port. For EFI applications use regulator P/N 13110, carbureted P/N 13212. Fully submersible for custom, in-tank placement. 25% more flow at pressure than our A1000 Fuel Pump. Perfect for "blow-through" carburettor engines up to 1700 HP. Billet Speed Pump Controller (P/N 16306) recommended for EFI street applications.
