Carburetted Phantom 340 Kit ARO17254

Includes Fuel Pump, Regulator, Filter, Gauge & Fittings

ARO17254

O17254

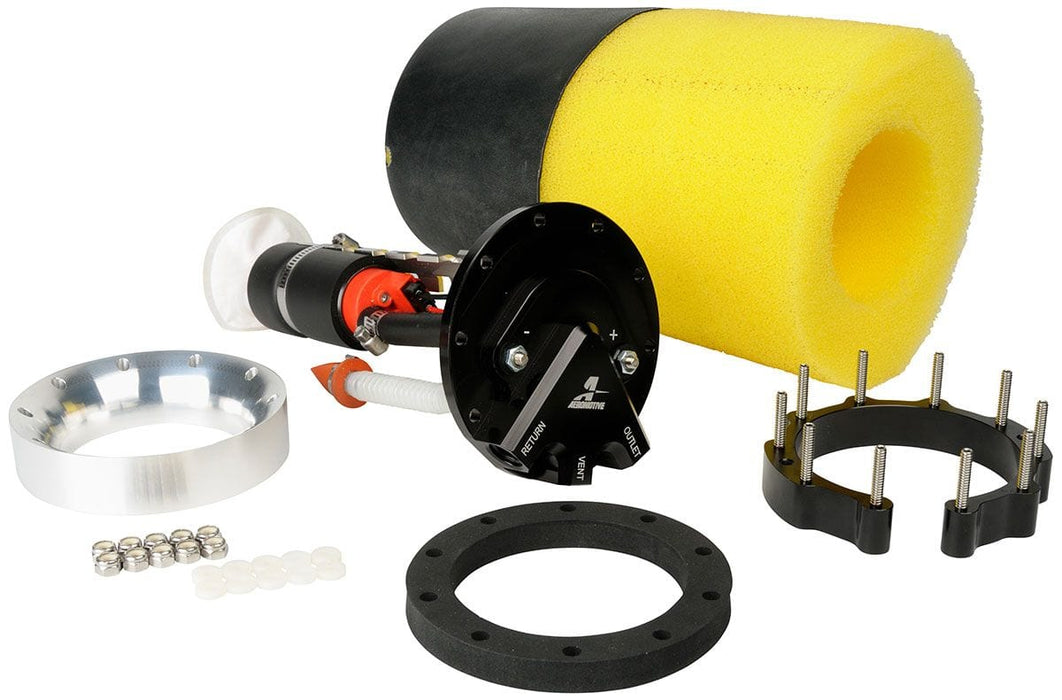

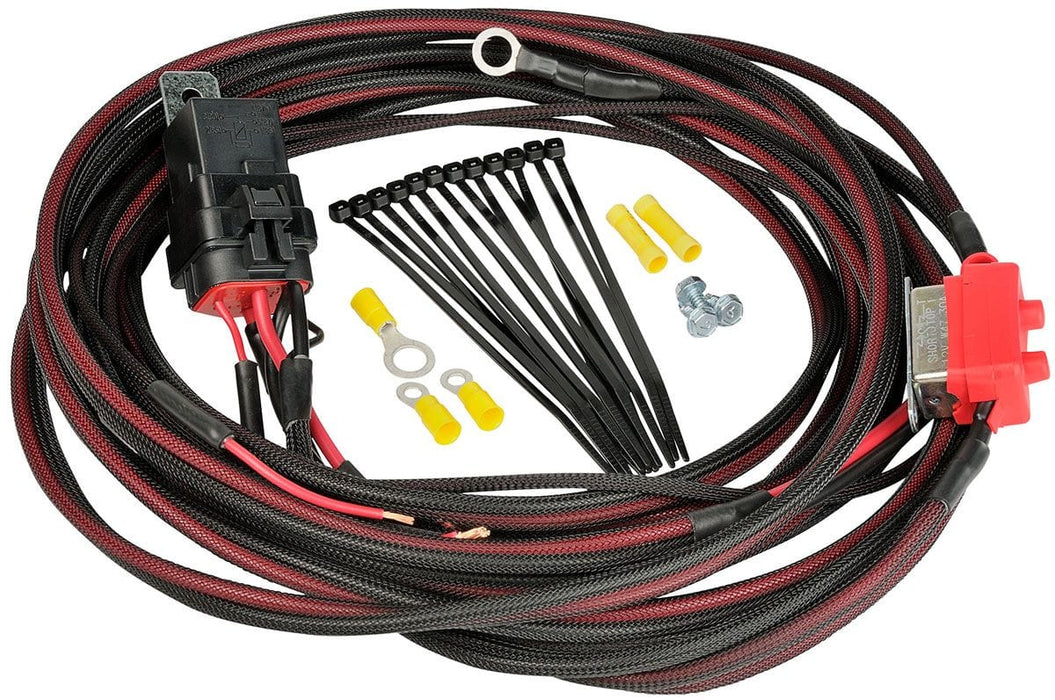

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, carbureted engines producing up to 900 plus flywheel Horse Power, on the street or at the track. AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. Kit Includes: 1ea p/n 18688 Phantom 340 1ea p/n 12321 Filter 10 micron Paper 1ea p/n 12305 Filter Bracket 1ea p/n 13204 Regulator, ByPass, Carb. 1ea p/n 16307 Fuel Pump Wiring Kit. 3 ea p/n 15606 AN-06 ORB to AN-06 flare 1 ea p/n 15607 AN-08 ORB to AN-08 flare 3 ea p/n 15610 AN-10 ORB to AN-08 flare 1ea p/n 15626 AN-06 Port Plug 2ea p/n 15649 AN-06 ORB to AN-08 flare 1 ea p/n 15632 0-15 PSI Pressure Gauge
