Aeromotive A3000 Drag Race Fuel Pump Assemblies 11222
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 11222
Part Type: Fuel Pumps
Product Line: Aeromotive A3000 Drag Race Fuel Pump Assemblies
Automotive Fittings Part Number: AEI-11222
UPC: 00684980005707
Fuel Pump Type: Electric external
Flow Rate: 400 gph/1,514 lph
Fuel Pressure (psi): 24 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -12 AN
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -10 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: A3000 fuel pump and regulator; fuel filter sold separately. By-pass pressure pre-set at 18 psi, adjustable from 14-24 psi. Current draw 12.5 amps at 12 psi. 16V maximum operating voltage. Pump will support on 16 volts normally aspirated gas 5000 hp and 3750 hp supercharged. On methanol 2500 hp normally aspirated and 2000 hp supercharged.
Description:

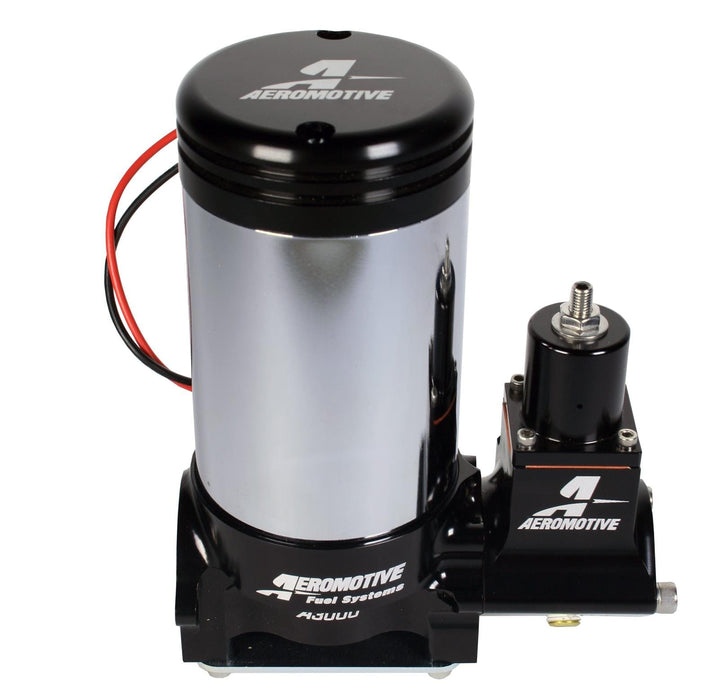

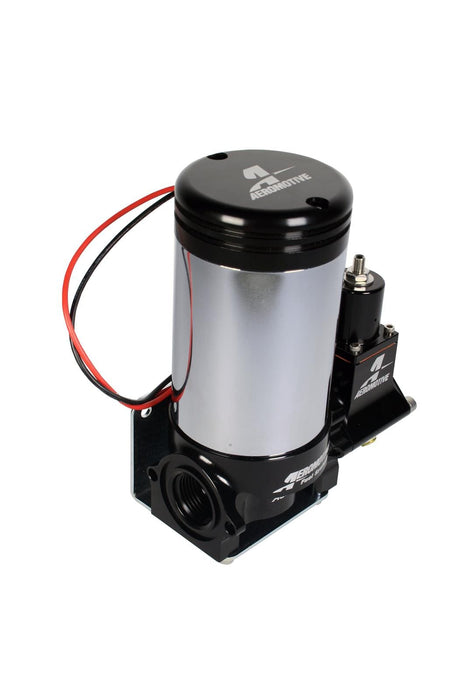

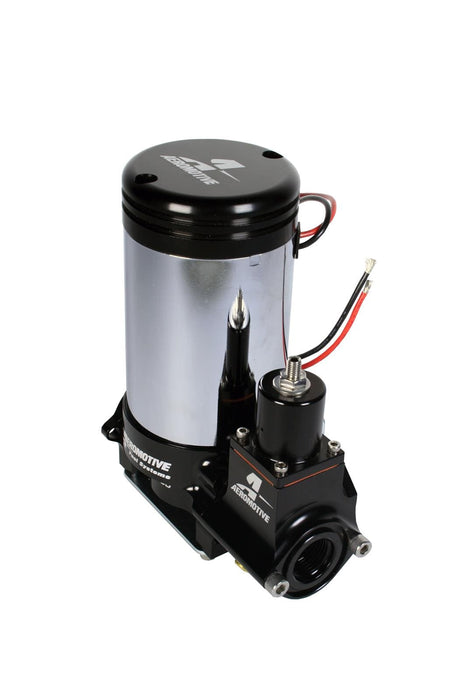

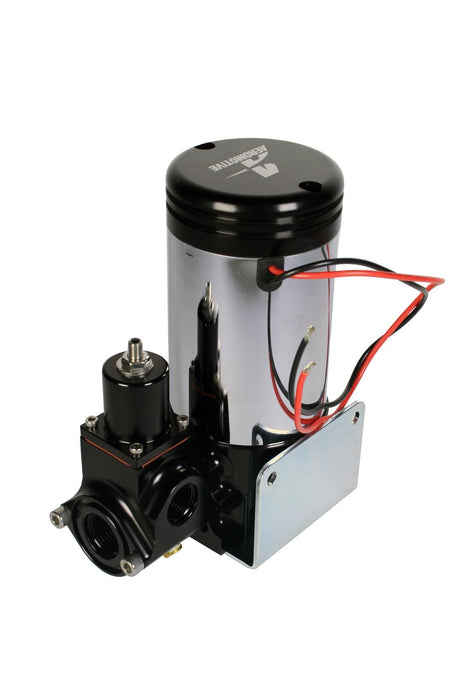

Aeromotive A3000 drag race fuel pump assemblies will feed your craving for extreme horsepower. Available with or without the 100-micron fuel filter, your assembly will include the efficient, high-flowing A3000 carbureted fuel pump and integrated true diaphragm-controlled bypass regulator. All the components offer the ability to be independently indexed for a custom installation and maximum performance gains. With features like less weight, more flow at pressure, modular design and options for mounting, these great-looking Aeromotive A3000 drag race fuel pump assemblies fully satisfy.
