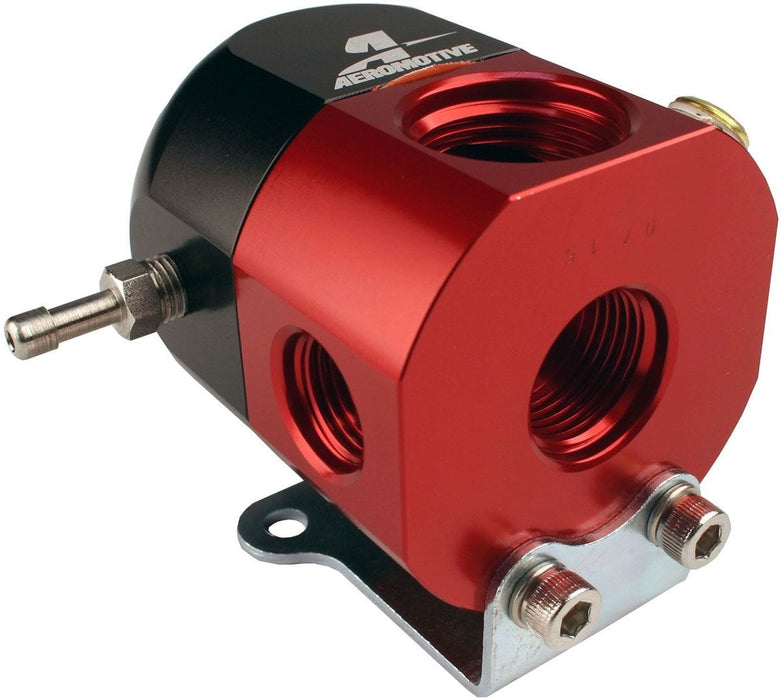

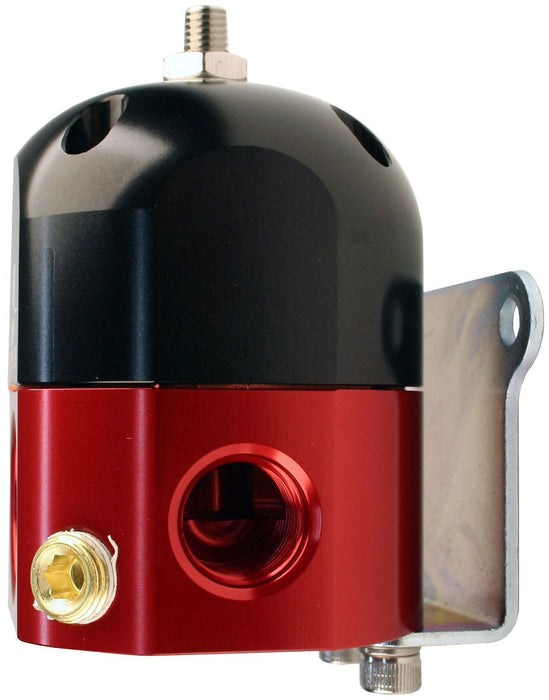

A1000 Carburetted Bypass Fuel Pressure Regulator ARO13204
ARO13204 - AEROMOTIVE CARB BYPASS REG
SKU ARO13204
by AEROMOTIVE
Original price
$449.92 +GST
-
Original price
$449.92 +GST
Original price
$449.92 +GST
$449.92 +GST
$449.92 +GST
-
$449.92 +GST
Current price
$449.92 +GST
$517.408 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped
A1000 Carburetted Bypass Fuel Pressure Regulator
3-15 PSI. ORB-10 Inlet Port, ORB-6 Outlet Ports
ARO13204
O13204
The A1000 Bypass Regulator was designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carburetted application. This regulator is perfect for naturally aspirated or blow-through supercharged engines. Features: Base fuel pressure adjustable from 3-15 PSI (1) ORB-10 inlet port and (1) ORB-08 return port (2) ORB-06 outlet ports and 1/8" NPT gauge port Fuel pressure rises on a 1:1 ratio when referencing boost Bypass design provides the ultimate, dynamic fuel delivery system Ideal for converting from fuel injection to carburetion using the stock, in-tank pump EFI conversions will require a larger-than-stock return line for proper low pressure control
