A1000 4-Port Bypass Fuel Regulator ARO13224

A1000 4-Port Bypass Fuel Regulator ARO13224

ARO13224 - AEROMOTIVE CARB BYPASS 4xPORT
SKU ARO13224
by AEROMOTIVE
Sold out
$508.60 +GST - $508.60 +GST
$508.60 +GST
$508.60 +GST
$508.60 +GST - $508.60 +GST
$508.60 +GST
$584.89 Including GST (NZ Customers only)
Availability:
Out of stock

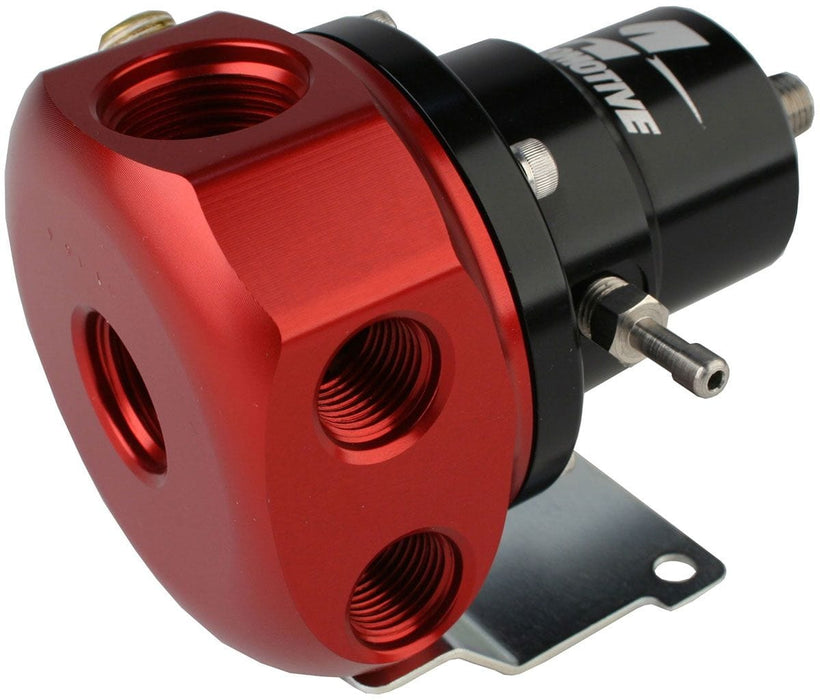

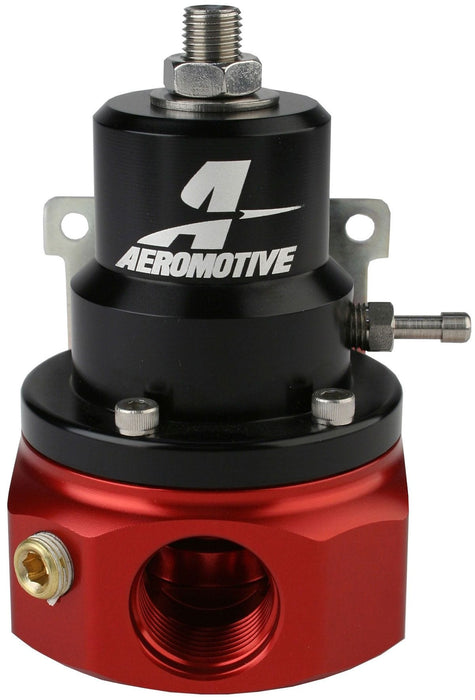

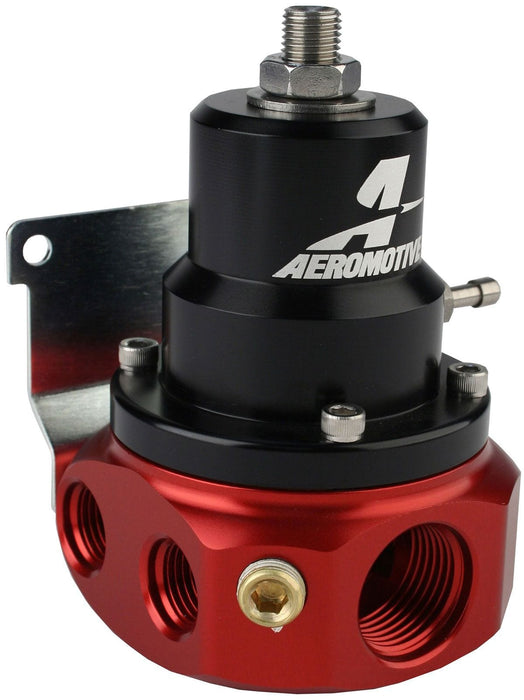

A1000 4-Port Bypass Fuel Regulator

Suit Carburettor With X1 -10AN Inlet, X4 -6AN Outlet & -8AN Bypass

ARO13224

O13224

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carburettor application. These regulators are perfect for naturally aspirated or "blow-through" supercharged engines. Features: Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8" NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.
