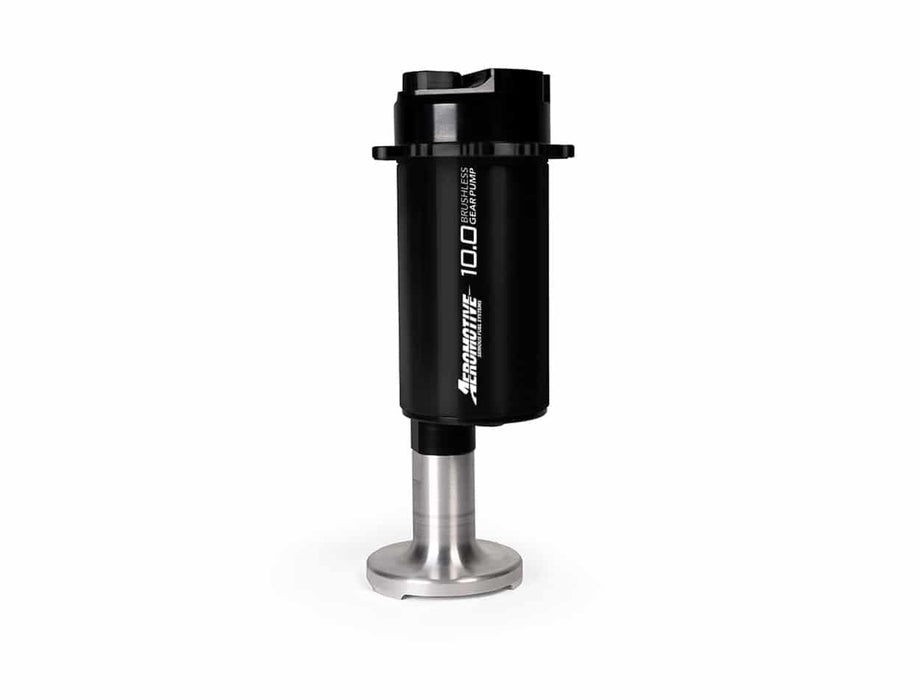

Aeromotive 10.0 GPM Brushless Variable Speed Gear Pumps 18055
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 18055
Part Type: Fuel Pumps
Product Line: Aeromotive 10.0 GPM Brushless Variable Speed Gear Pumps
Automotive Fittings Part Number: AEI-18055
UPC: 684980011791
Fuel Pump Type: Electric In-tank
Flow Rate: 10.0 gpm
Fuel Pressure (psi): 60-100 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -12 AN O-ring
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -10 AN O-ring
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.
Description:
Aeromotive 10.0 gpm brushless variable speed gear pumps deliver ground-shaking performance with advanced technology. Aeromotive took what they learned from their mechanical spur gear pumps and engineered it to work in a compact flow-through design, creating a fuel pump that is able to move more fuel at pressures up to 150 psi without a drop in flow.
Aeromotive true variable speed controller offers the advantages of built-in pump speed control via a dedicated 0 to 5 V analog DC input signal. The controller capitalizes on Aeromotive's existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat and the introduction of environmental via reduced fuel recycling.
Features include:
* E85 compatible, reduce maximum FWHP by 30 percent
* Lighter than the traditional external mount pumps
* Reduced current draw at higher, EFI pressures
* Extended service life in methanol and ethanol
* New integral spur-gear pumping mechanism
* 90 psi continuous operating pressure and up to 150 psi peak pressure, base plus boost
* Integral, external brushless controller for clean installation, cooler fuel, and enhanced reliability
* ORB-12 inlet and ORB-10 outlet ports
* Requires straight 12 V DC to 16 V DC power supply
* Not compatible with pulse modulated systems or fuel pump speed controllers
Supports:
* EFI
-- Up to 6,900 fwhp on gas--naturally aspirated
-- Up to 4,900 fwhp on gas--forced air induction
-- Up to 4,830 fwhp on E85--naturally aspirated
-- Up to 3,430 fwhp on E85--forced air induction
-- Up to 2,415 fwhp on methanol--naturally aspirated
-- Up to 1,715 fwhp on methanol--forced air induction
* Carbureted
-- Up to 7,600 fwhp on gas--naturally aspirated
-- Up to 5,500 fwhp on gas--forced air induction
-- Up to 5,300 fwhp on E85--naturally aspirated
-- Up to 3,850 fwhp on E85--forced air induction
-- Up to 2,650 fwhp on methanol--naturally aspirated
-- Up to 1,925 fwhp on methanol--forced air induction
