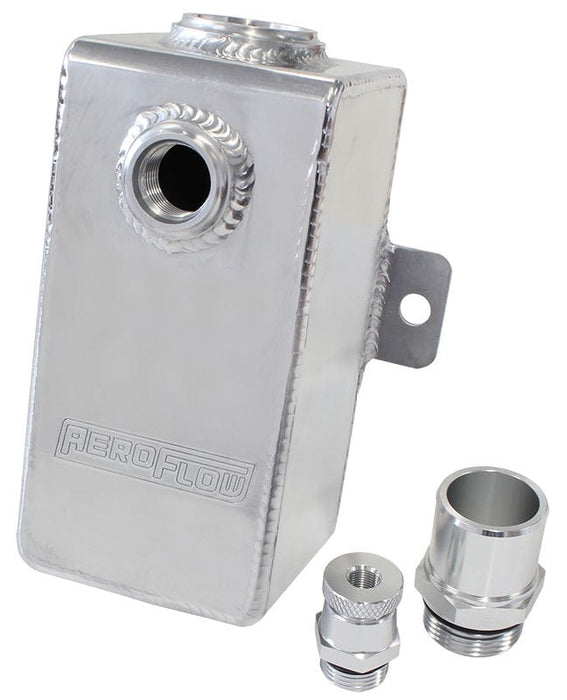

Universal Breather Tank - Polished AF77-2015
1.1 litre / 37oz capacity, accepts 1-3/8" breather & -10 ORB hose fitting
AF77-2015
77-2015
The Aeroflow Performance universal breather tank is an essential step in removing PCV oil before it enters the combustion chamber. This is used on the fresh air side of an engine breather system and is open to the atmosphere or plumbed back into the system after the MAF sensor on EFI equipped engines. Aeroflow's 1.1 litre/37oz Universal Fabricated Breather tanks are skilfully built from billet 6061-T6 aluminium with internal baffles. This tank has a billet valve on the base to ensure easy drainage They come either highly polished or in a black anodised finish with an integral mounting bracket. The tank features one female -10AN O-ring which can be adapted to any lines and fittings for plumbing purposes. A female -16AN O-ring is welded into the top of the tank and a -16AN male O-ring fitting to 35mm barb is supplied. This allows a filter which is sold separately to be installed onto it, examples of filter that fit in the Aeroflow Performance range are AF2871-1440 with a chrome top filter or AF2271-1440 black top filter. This tank features a drain valve (AF615-00S or AF615-00BLK) which is pre-installed into a female -10AN O-ring into the bottom of the tank. The exit of this valve incorporates a female 1/8" NPT for connection of an appropriate drain tube to be attached if required. Simply turn the valve anti-clockwise to release/empty the tank and clockwise to close the valve.
