Turbo Drain Adapter AF463-02

Turbo Drain Adapter AF463-02

AF463-02 - TURBO DRAIN ADAPTER -10 ORB
SKU AF463-02
by Aeroflow Performance
$19.45 +GST - $19.45 +GST
$19.45 +GST
$19.45 +GST
$19.45 +GST - $19.45 +GST
$19.45 +GST
$22.3675 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped

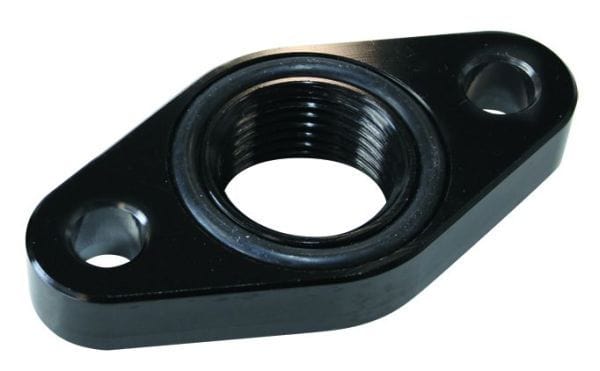

Turbo Drain Adapter

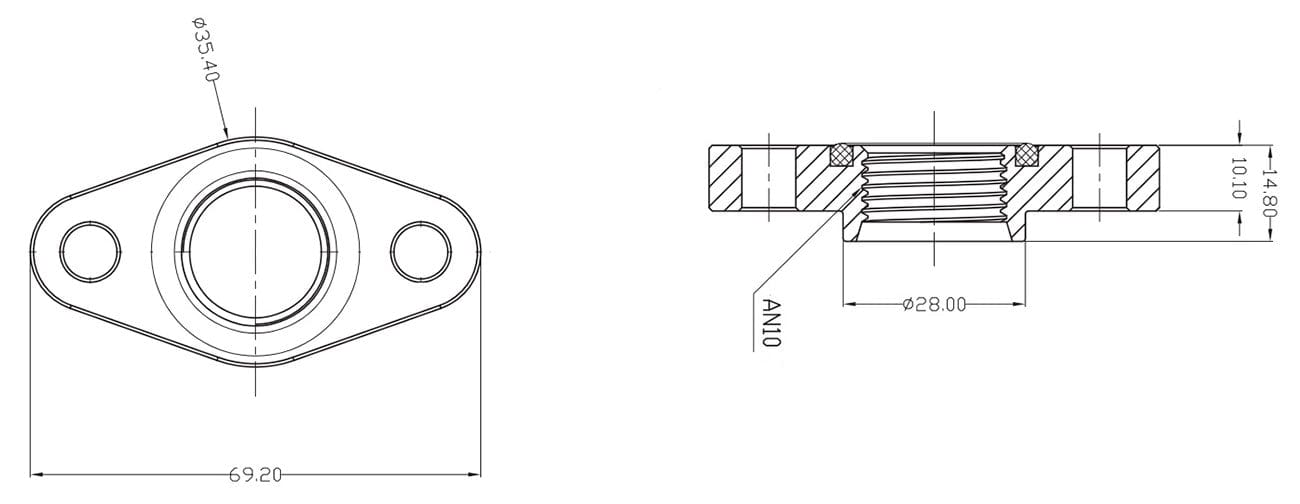

-10AN ORB outlet, 51mm bolt centre, Black Finish

AF463-02

463-02

Turbo Oil Drain Adapter With O-Ring Seal. -10 ORB female with 50.8mm hole centres to suit turbos with 50.8mm bolt centres on core. This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
