Turbo Drain Adapter AF463-01

Turbo Drain Adapter AF463-01

AF463-01 - TURBO DRAIN ADAPTER -8 ORB
SKU AF463-01
by Aeroflow Performance
$20.41 +GST - $20.41 +GST
$20.41 +GST
$20.41 +GST
$20.41 +GST - $20.41 +GST
$20.41 +GST
$23.4715 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped

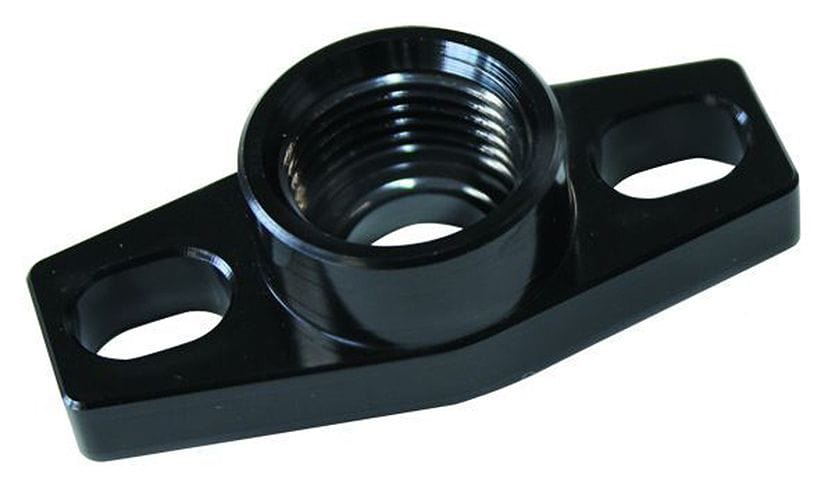

Turbo Drain Adapter

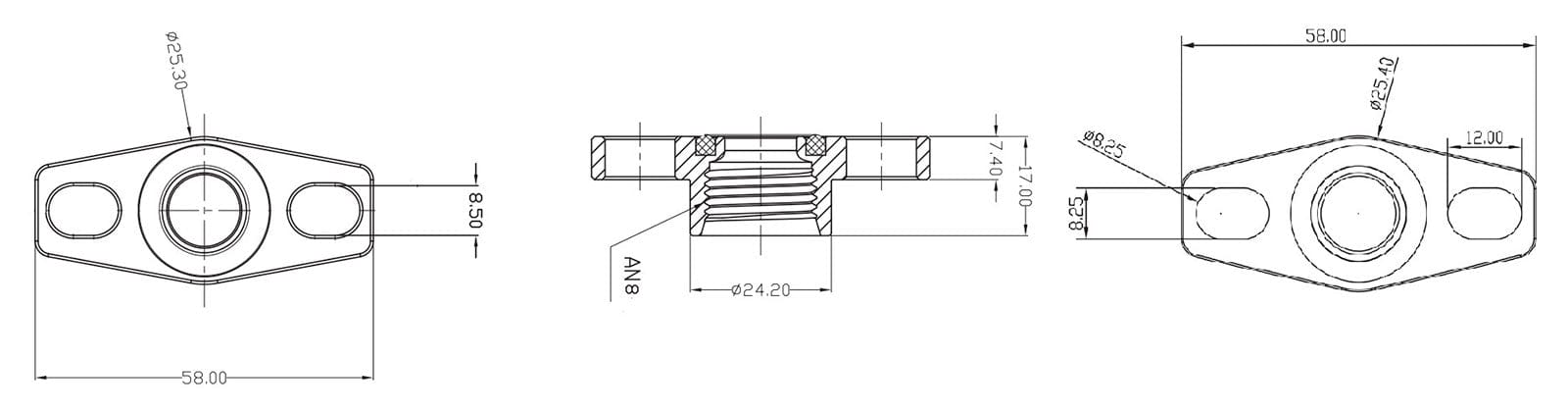

-8AN ORB outlet, 36 to 47.5mm bolt centre, Black Finish

AF463-01

463-01

Turbo Oil Drain Adapter With O-Ring Seal. -8 ORB female with 38-44mm hole centres to suit turbos with 38mm bolt centres on core. This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
