Temperature Sensor 0-150°C AF49-1550

Temperature Sensor 0-150°C AF49-1550

AF49-1550 - TEMPERATURE SENSOR 0 - 150 C
SKU AF49-1550
by Aeroflow Performance
$53.03 +GST - $53.03 +GST
$53.03 +GST
$53.03 +GST
$53.03 +GST - $53.03 +GST
$53.03 +GST
$60.9845 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped

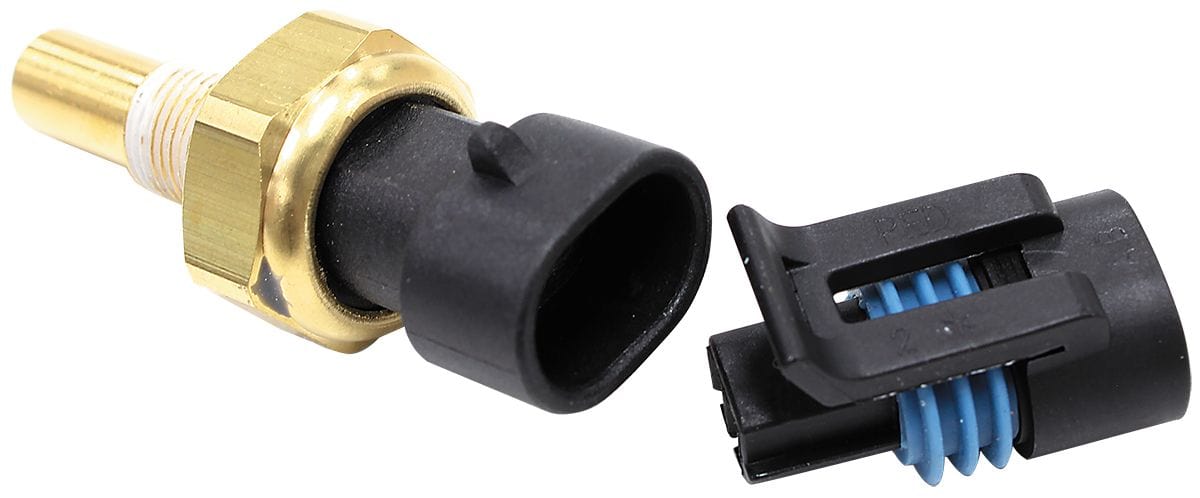

Temperature Sensor 0-150°C

1/8" NPT Thread

AF49-1550

49-1550

The Aeroflow Performance temperature sensor is a Negative Temperature Coefficient (NTC) thermistor sensor. The NTC is a passive resistor, and the resistance of an NTC varies with temperature. More specifically, as the ambient temperature around an NTC increases, the resistance of the NTC decreases. This sensor is fully calibrated for high accuracy and designed for high stability across the temperature range. It includes the plug and pins to easily wire into any application. This sensor has a 1/8" NPT thread The sensor body material is Brass Overall length is 51.70mm Depth of sensor is 22.20mm Operating temperature range is -20 to 150 degree Celsius Supply working voltage is 5 volts Response working time is 10 milliseconds

Instructions
