Pipe Beading Tool (Large Bore) AF98-2017

AF98-2017 - PIPE BEADING TOOL 2MM WIDE
SKU AF98-2017
Original price $585.77 +GST - Original price $585.77 +GST
Original price $585.77 +GST
$585.77 +GST
$585.77 +GST - $585.77 +GST
Current price $585.77 +GST
$673.6355 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped
Pipe Beading Tool (Large Bore)

Suits 5/8" and Larger Pipe Beader

AF98-2017

98-2017

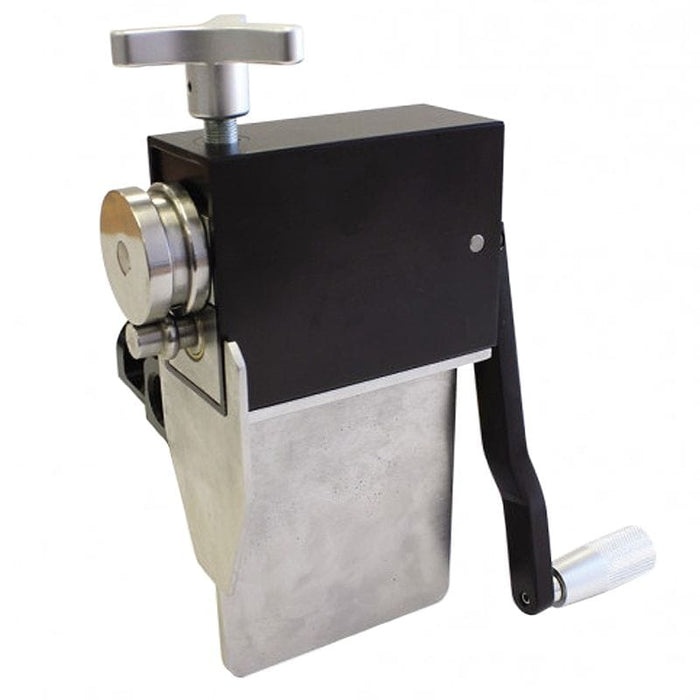

The Aeroflow performance pipe beading tool is a staple for any car fabricators. Especially when it comes to making custom intercooler piping and wanting to keep the silicone hose from blowing off. The rollers are crafted from heat treated steel and 6061 aluminium components. This vice-mounted tool will form a perfect bead on the end of aluminium or copper tubing. Simply insert the end of the tubing between the dies and start cranking the turning handle. Give the wheel a quarter-turn with each full rotation of the tubing to gradually tighten the dies against the tubing. Great for beading pipe from 15.87mm (5/8”) to 152.4mm (6”) diameter. Material thickness: Aluminium up to 1.65mm (.065”) and stainless steel or steel pipe up to 1.25mm (.050”).
