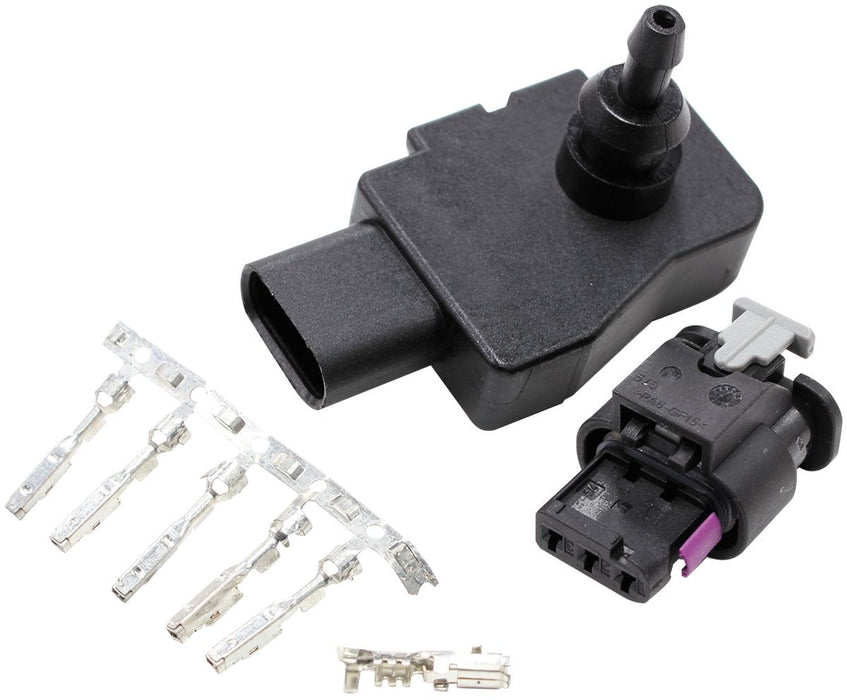

3 Bar Manifold Absolute Pressure (MAP) Sensor with 5mm Vacuum Barb Port AF49-155

3 Bar Manifold Absolute Pressure (MAP) Sensor with 5mm Vacuum Barb Port AF49-155

AF49-1552 - MAP SENSOR MANIFOLD ABSOLUTE
SKU AF49-1552
by Aeroflow Performance
$137.61 +GST - $137.61 +GST
$137.61 +GST
$137.61 +GST
$137.61 +GST - $137.61 +GST
$137.61 +GST
$158.2515 Including GST (NZ Customers only)
Availability:
in stock, ready to be shipped
3 Bar Manifold Absolute Pressure (MAP) Sensor with 5mm Vacuum Barb Port

AF49-1552

49-1552

The Aeroflow Performance Manifold Absolute Pressure (MAP) sensor is a 3 bar MAP sensor. This sensor is used to determine engine load on forced induction engines. This sensor is intended to be used on engines producing positive manifold pressure up to 2 bar, or roughly 30psi of boost. This sensor is not recommended for use with engines that will not see boost above 1 bar, as it limits sensor resolution. This sensor is fully calibrated for high accuracy and designed for high stability across the temperature range. It includes the plug and pins to easily wire into any application. This sensor has a 5mm vacuum barb Overall length is 52mm Overall width is 27.50mm Overall body height is 11.60mm Operating pressure range is 20 kpa to 400kpa Supply voltage range is 4.65 to 5.35 volts (working voltage is 5 volts) Response working time is 1 millisecond
