AutoMeter Competition LCD Displays 6021

Brand: AutoMeter
Manufacturer's Part Number: 6021
Part Type: Data Acquisition
Product Line: AutoMeter Competition LCD Displays
Automotive Fittings Part Number: ATM-6021
UPC: 046074060212
Quantity: Sold individually.
Description:

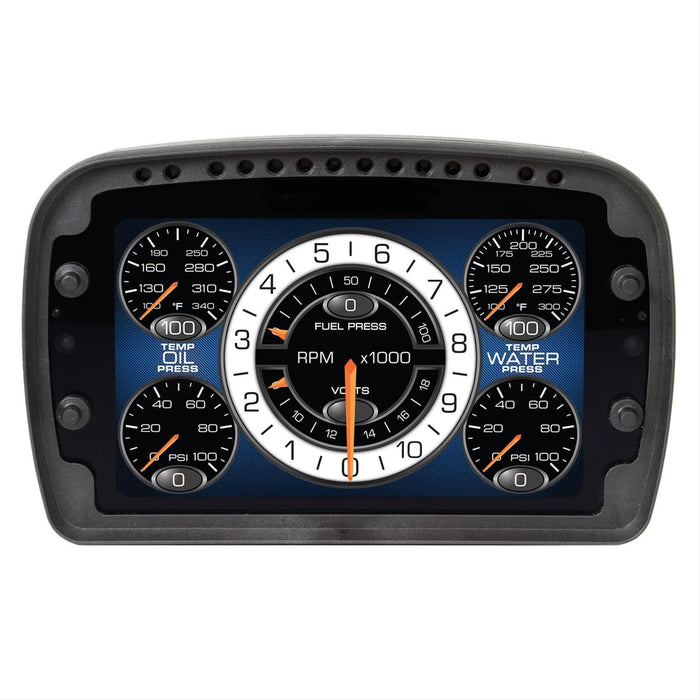

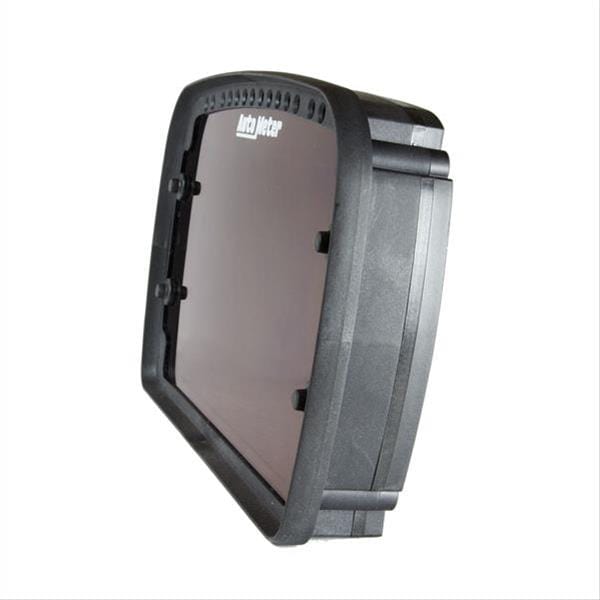

AutoMeter competition LCD displays are the next evolution of driver communication and data acquisition. Designed for the harshest environments, their carbon composite housings are IP65 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. A 7 in. LCD panel ensures easy visibility under all conditions with a retina level pixel density, unmatched brightness, and an optically bonded lens for extreme glare suppression. The display layout is fully configurable.

Each system will accommodate four programmable data us channels (two CAN and two serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3-axis accelerometer. Data collection at up to 1 kHz and the internal memory allows for practically infinite recording time. User-definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical on-screen information.

Display Features:

* 1000 nit brightness for unmatched day and nighttime visibility with 800 x 480 resolution
* Onboard photo sensor for automatic brightness control
* 8.3 in. wide x 5.2 in. high x 1.4 in. deep

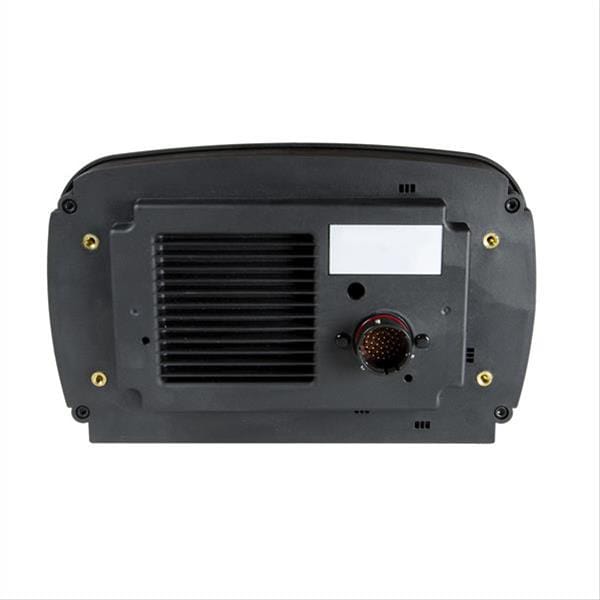

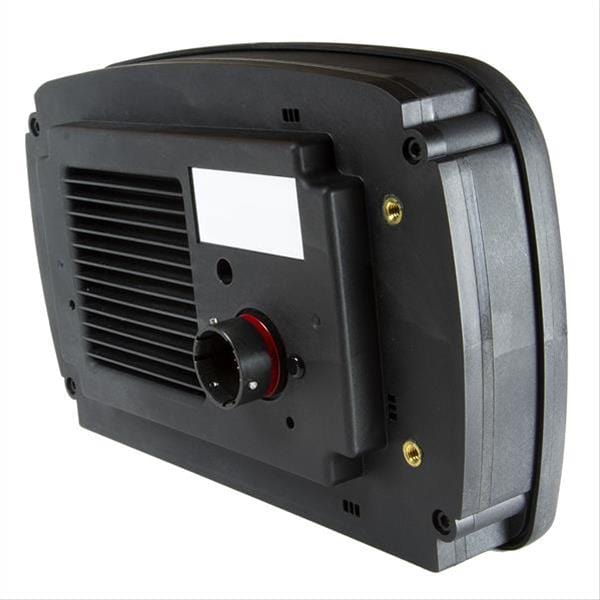

* Single 37-way autosport (AS) wiring loom connector for ease of installation and removal
* 12 analog inputs for discrete sensors; ideal for parameters not supported on the vehicle communication bus or ECU
* Expansion modules available separately for additional input
* DataPro Designer PC setup utility
* Fully user-configurable from display via integrated 4-button interface for at-track changes
* Optional external switch set can be mounted within driver reach for easy access

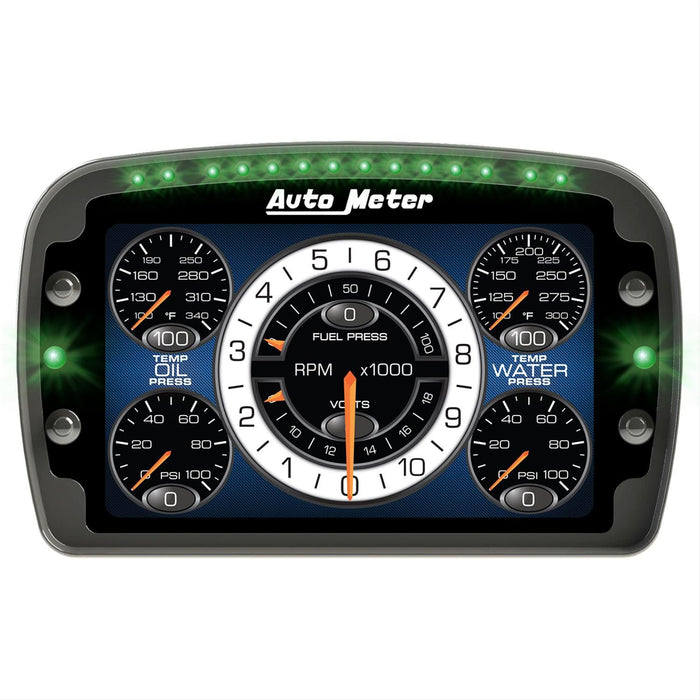

* 16 configurable multi-color LED indicator lights can be programmed for a wide variety of alarm and gear change indication functions
* Initial release supports six layers or screens selected from user-configurable templates (screens/instrument cluster designs/layouts); additional configurability supporting team selected graphics, parameter/instrument type and location, and size available with future firmware and PC software releases

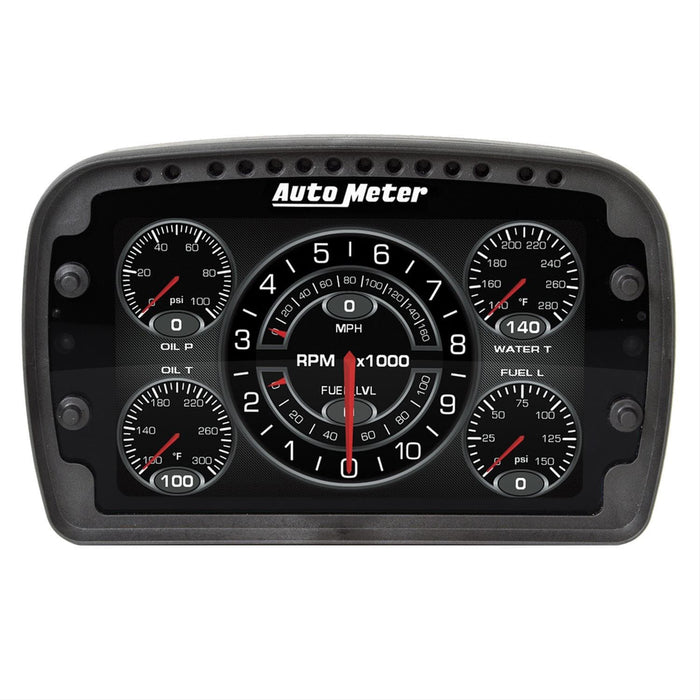

* Perfectly rendered virtual analog needles, value display bands, digital value indicators for vehicle parameters and configurable full-color text warning messages
* Patented predictive lap-timing display for driver and vehicle development

Inputs:

* Four pulse/digital or analog inputs
* Eight analog inputs (0-5 V or 0-12 V)
* Five external switches/control outputs
* Internal 3-axis accelerometer +/-6 g
* Internal battery voltage
* GPS mapping and lap timing

Communications:

* Two configurable RS232 ports
* Configurable CAN BUS ports
* Ethernet port
* USB port

Data Recording:

* 4 GB onboard data-logging memory
* Record up to 128 channels
* Sample rates up to 500 Hz (select inputs 1000 Hz)
* Includes powerful DataPro analysis software

Environmental:

* Operating temperature range: 20 to 180 degrees F
* Humidity range: 0 to 100 percent relative humidity

Miscellaneous:

* Boot time/reset time to data screen: 2 seconds
* Boot time for full graphic application: 8 seconds
* Weight: 1.5 lbs.
