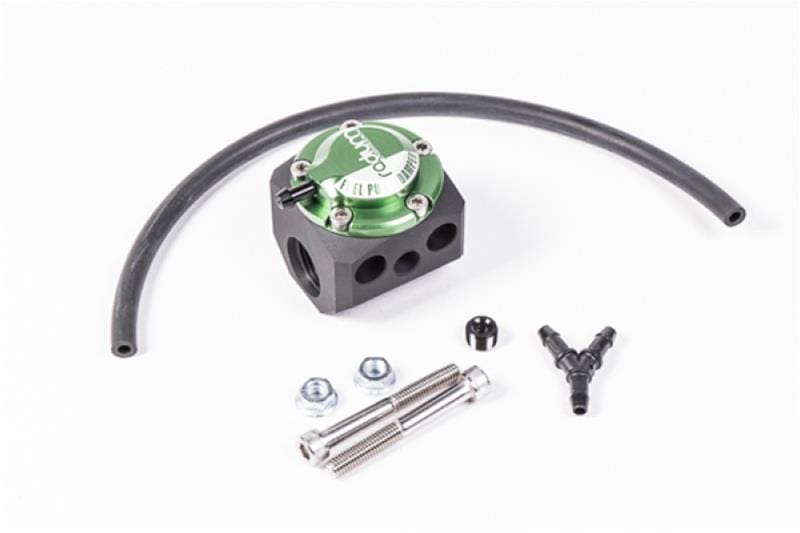

Radium Engineering Fuel System Pulsation Dampers 20-0199-06
SPECIAL ORDER ITEM
This is a special order item. When you complete your order, we will order it from the supplier.
FREIGHT INFORMATION
Pricing does not include additional freight charge.
Request a quote below.
Manufacturer's Part Number: 20-0199-06
Part Type: Fuel System Pulsation Dampers
Product Line: Radium Engineering Fuel System Pulsation Dampers
Automotive Fittings Part Number: RDM-20-0199-06
Quantity: Sold as a kit.
Notes: -8 AN ORB inlet/outlet.
Description:
The opening and closing of fuel injectors create pressure pulses in the fuel rail which can lead to unstable fuel pressure. To achieve a safe and consistent rail pressure, a fuel pulse damper (FPD) is often necessary.
Radium Engineering fuel system pulsation dampers feature an internal diaphragm that will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the rpm range and can often help idle surge, especially with high-flow injectors. They also help solve erratic lean air/fuel ratio spikes, commonly experienced as "stumbling", that are difficult to tune out. Kits come with different male adapter fittings. Choose the proper one for your fuel feed hose.
Features:
* Anodized aluminum housing with a large 0.69 in. center bore
* Two in-line inlet/outlet ports machined with 3/4 in.-16 UNF threads for 8 AN ORB fittings
* At 1.98 in. tall, the FPD-R can be used in space-constrained applications
* FPD-R base pressure requirement equals 40 to 70 psi (static)
* Includes adapter fittings which seal to the billet housing using Viton® O-rings
* An 1/8 in. NPT female port is threaded into the center of the fuel pulse damper
* Safe for use with all fuel types, including alcohol blends such as E85
* Vacuum/boost reference port allows for proper performance even at elevated fuel pressures
